Display Group 002




Display Group 002:

Last four compressor cut-off conditions

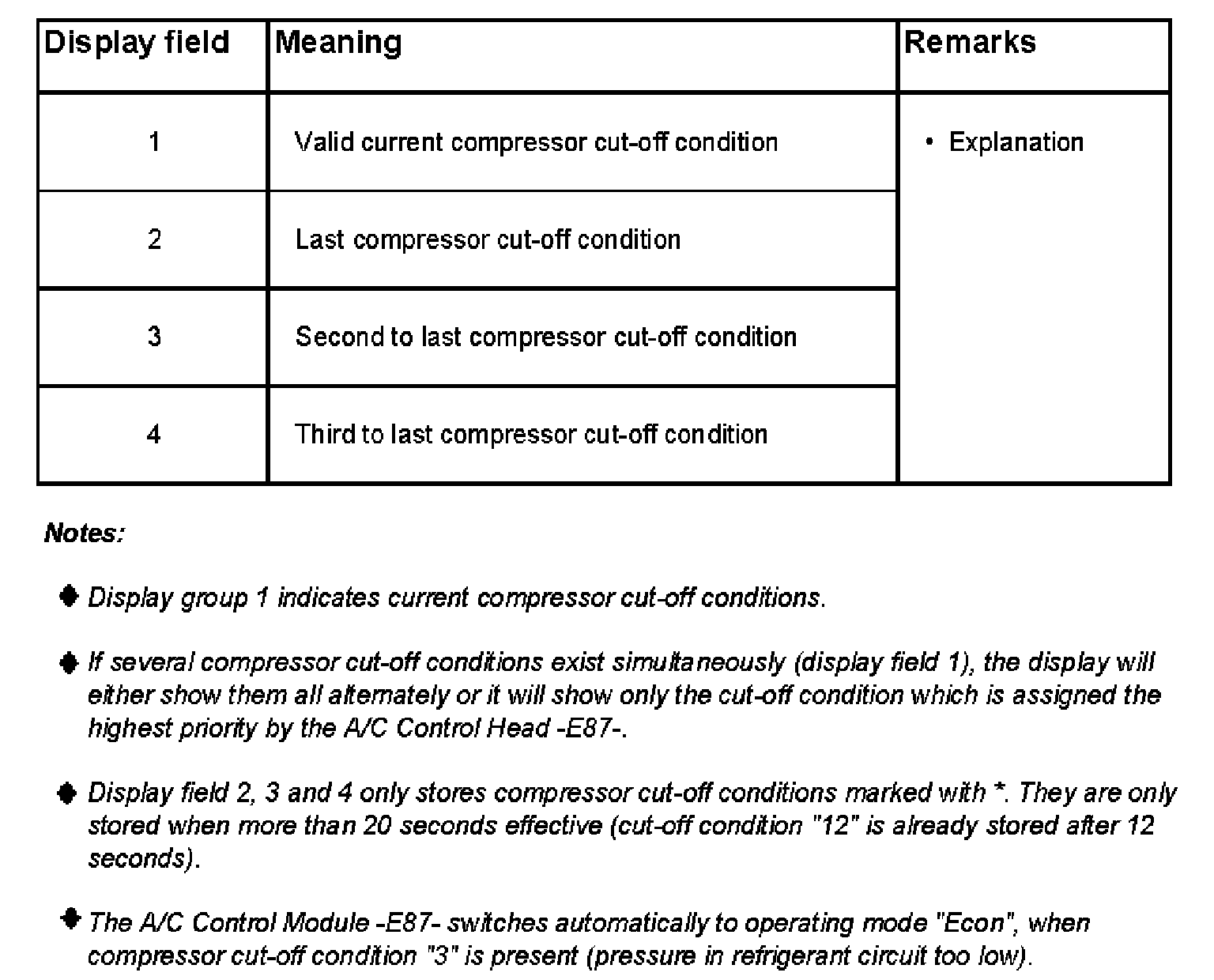

Display Field 1 - 4:






Interpretation of compressor cut-off condition for display field 1 - 4:

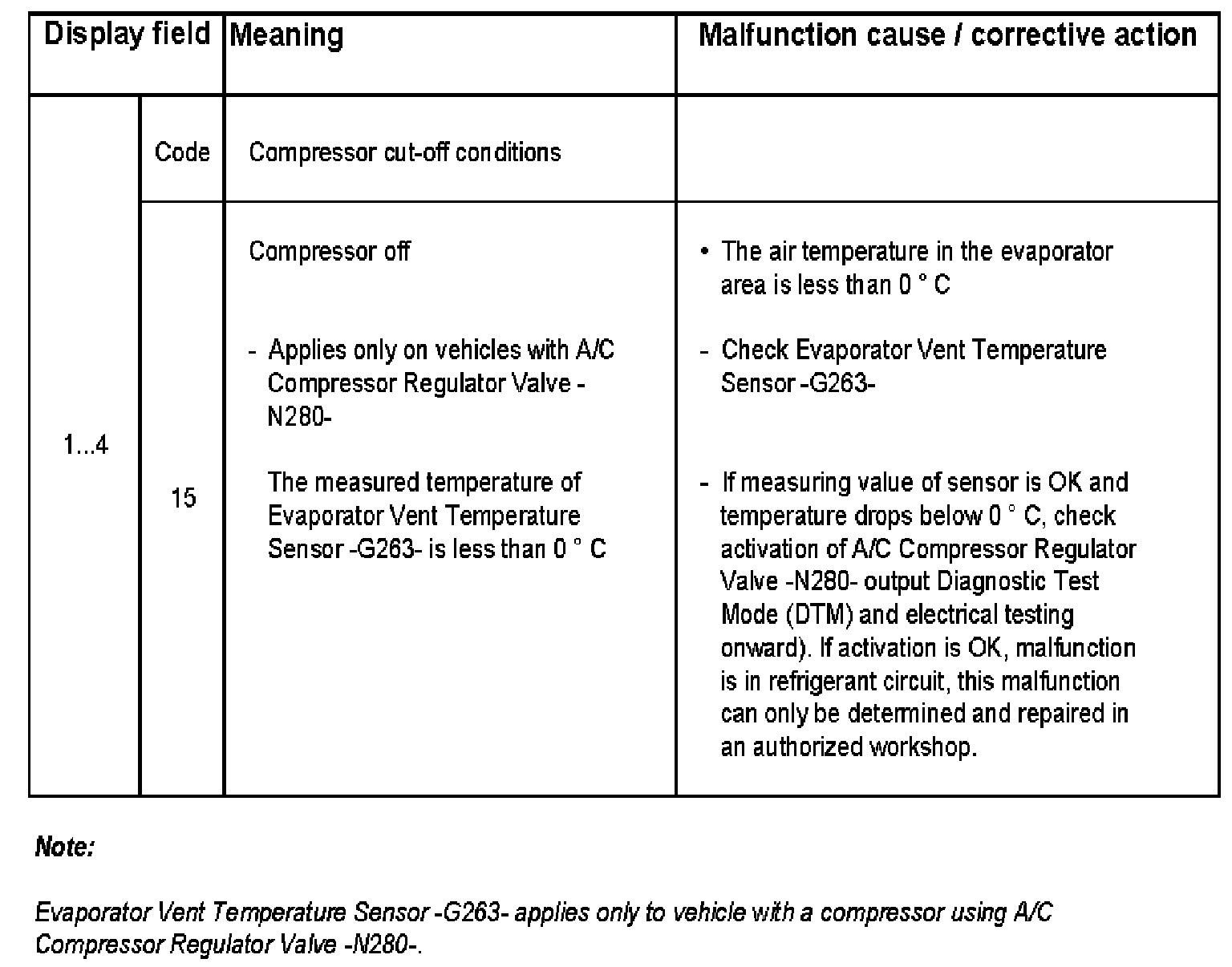

Display Field 1 - 4, Part 1:

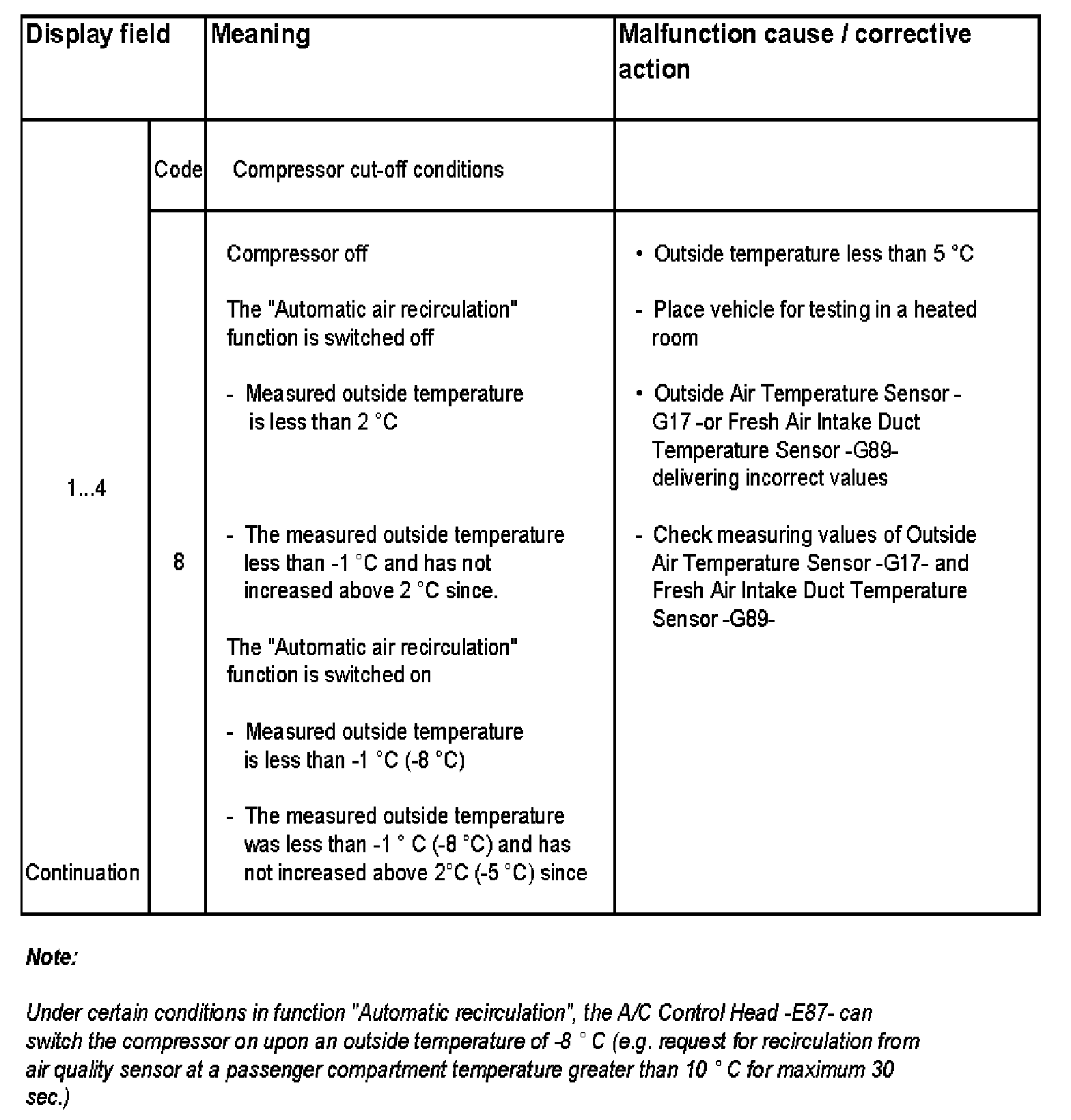

Display Field 1 - 4, Part 2:

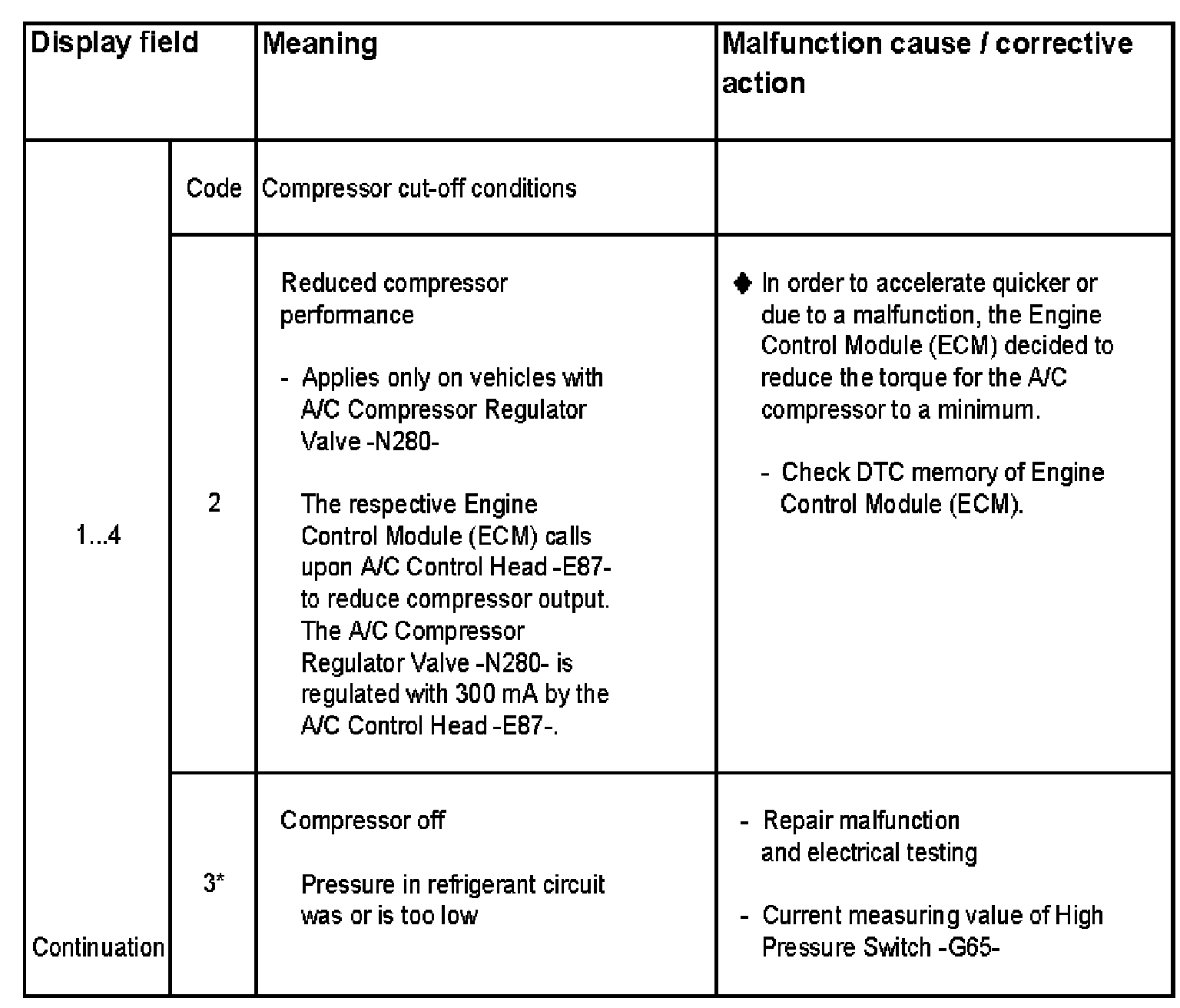

Display Field 1 - 4, Part 3:






Display Field 1 - 4, Part 4:






Display Field 1 - 4, Part 5:






Display Field 1 - 4, Part 6:






Display Field 1 - 4, Part 7:






Display Field 1 - 4, Part 8:






Display Field 1 - 4, Part 9:
