Radio Systems: Amplifier

NOTE:

The amplifier -R12- is not diagnostic-capable.

Use current flow diagram to check wiring. Refer to the appropriate System Wiring Diagram information.

-- Switch off all electrical consumers.

-- Remove the key.

Removing

-- Remove luggage compartment right side trim. Refer to Removal and Installation .

-- Disconnect connector on amplifier -2-.

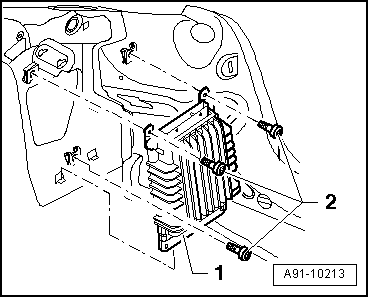

Fig 1: Identifying Amplifier, Screws, And Bracket
GWWA91-10213Courtesy of AUDI OF AMERICA, LLC

-- Remove the screws -1- (4 Nm) and remove the amplifier -2- from the bracket -3-.

Installing

-- Install in reverse order of removal.
