Secondary air system, checking: Function: Notes
- After cold start, engine control module -6- activates secondary air pump -1- via secondary Air Injection (AIR) pump relay -5-, and air is fed to secondary air combination valve -3-.
- At the same time the system activates secondary Air Injection (AIR) solenoid valve - 8- which supplies vacuum to secondary air combination valve -3-. The relevant combination valve opens a passage for the secondary air system to supply air to exhaust ports in cylinder head.
NOTE:

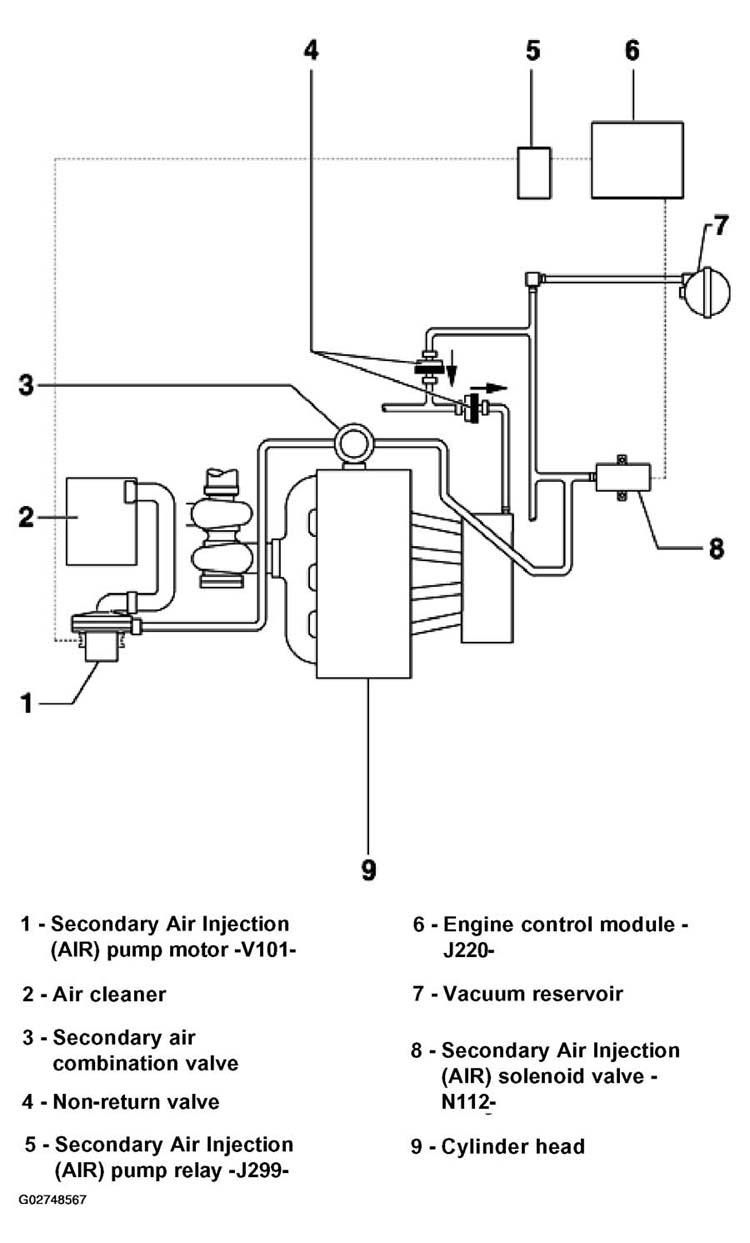

The following list refers to items in Fig 1.
- Secondary Air Injection (AIR) pump motor -V101-
- Installation location, see Figure
- Air cleaner
- Secondary air combination valve

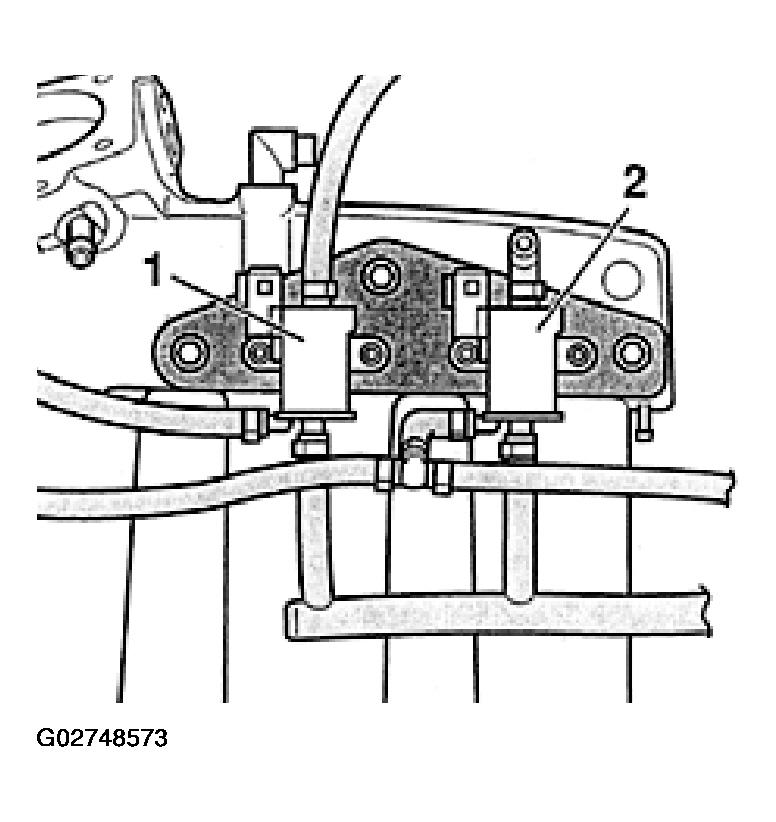

- Installation location, see Figure and SECONDARY AIR INJECTION (AIR) SOLENOID VALVE -N112-, CHECKING
- Non-return valve

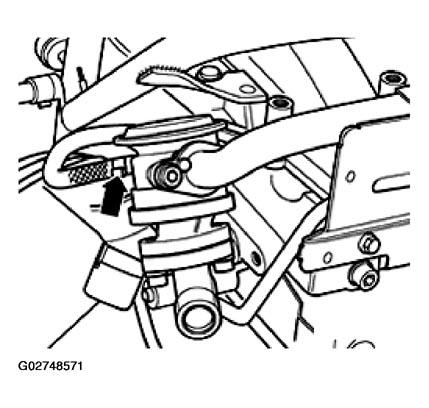

- Installation position (light/dark side and direction of arrow): As shown in illustration. Arrow indicates direction of flow.
- Secondary Air Injection (AIR) pump relay -J299-

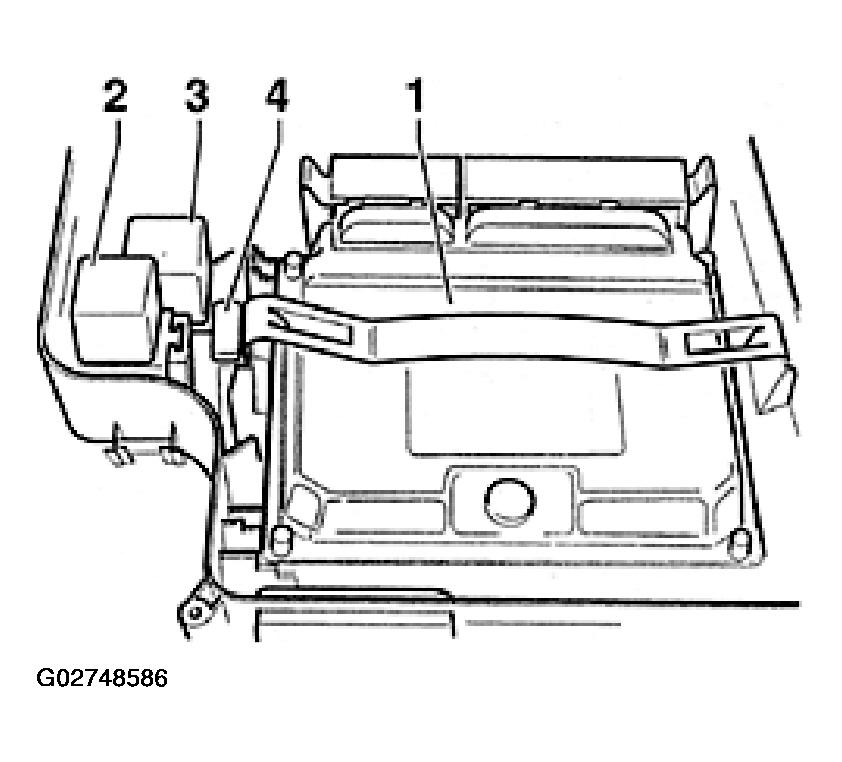

- Installation location, see Figure
- Engine control module - J220-
- Vacuum reservoir
- Installation location: in front left wheel housing behind wheel housing liner
- Secondary Air Injection (AIR) solenoid valve - N112-
- Installation location, see Installation location of secondary Air Injection (AIR) solenoid valve -N112-
- Cylinder head
