Transmission, Transporting

Special tools and workshop equipment required

Procedure

The bracket 3282 can be used when transporting the transmission as well as for setting up the -T10013-.

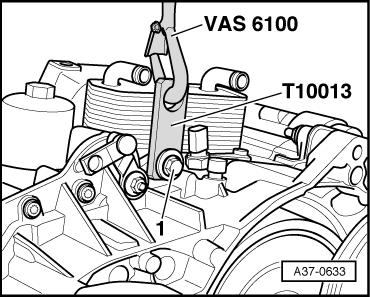

Fig 1: Attaching Workshop Crane VAS 6100 To Bracket T10013

Courtesy of AUDI OF AMERICA, LLC

-- Remove threaded studs from T10013 by releasing circlip.

-- Secure the T10013 with a bolt -1- M8x40 and a shim, with outer diameter 30 mm, to the transmission lifting eye.

CAUTION:

When transporting, make sure transmission fluid cooler is not damaged.

-- Engage T10013 on VAS 6100.
