Transmission, Transporting

Special tools and workshop equipment required

• Shop Crane VAS6100
• Transmission Lift Hook T40013

Procedure

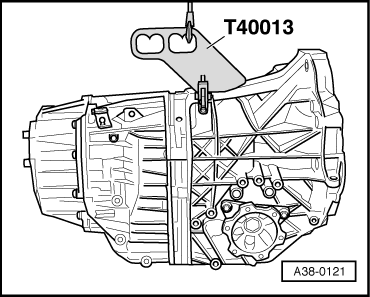

Fig 1: Identifying Transmission Lift Hook T40013 Used To Transporting The Transmission

Courtesy of AUDI OF AMERICA, LLC

-- Attach and secure the Transmission Lift Hook T40013 to the upper rib on the transmission housing.

-- Connect the Shop Crane VAS6100 hook into the mount on the Transmission Lift Hook T40013 as illustrated.

-- Lift the transmission using the Shop Crane VAS6100 and the Transmission Lift Hook T40013.
