Engine Number

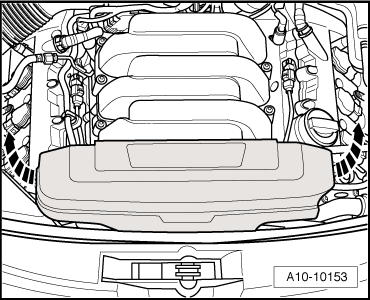

-- Pull front engine cover off -arrows-.

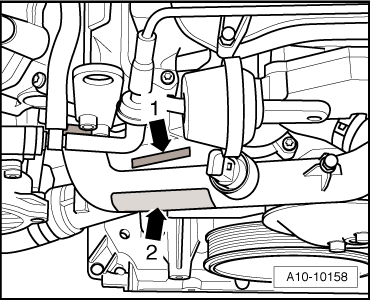

- The engine number ("engine code" and "serial number") is located at front on cylinder block, below the right cylinder head -arrow 1-.
- Additionally, a sticker -arrow 2- is affixed to the front coolant line with the "engine code" and "serial number".
- The engine code is also located on the vehicle data plate.
