Window Guide, Removing And Installing

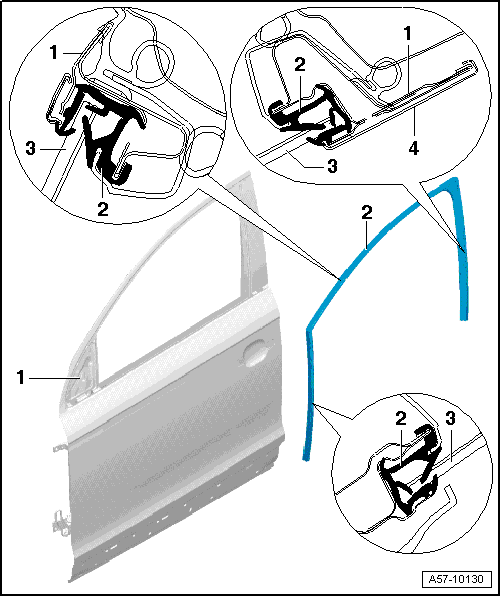

Fig 1: Identifying Window Guide Remove/Install Components

Courtesy of AUDI OF AMERICA, LLC

Door
Window Guide
- Door window removed. Refer to FRONT DOOR WINDOW, REMOVING AND INSTALLING .
- For easier installation, coat window guide with a soap solution.
- Press window guide into guide shafts as shown.
Door Window
B-Pillar Trim
