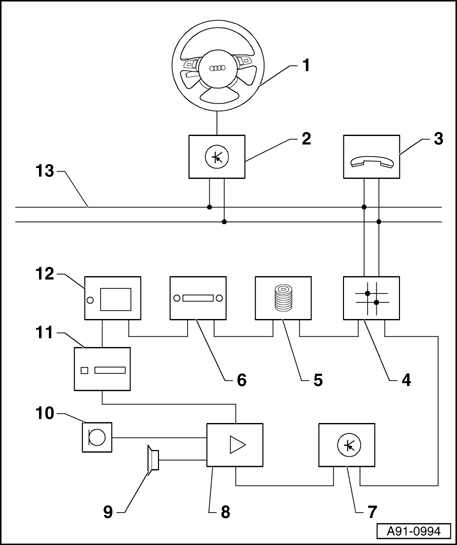

Multi-function steering wheel, layout
1 - Multifunction Steering Wheel
- With Multi-function Steering Wheel Control Module J453 under right button
- Removing and installing multi-function buttons → Multi-function buttons, removing and installing
- Removing and installing Tiptronic switch → Tiptronic Switch, removing and installing
2 - Steering Column Electronic Systems Control Module J527
- On steering column at steering column switches
- Removing and installing → 94 - LIGHTS, SWITCHES - EXTERIOR
3 - Telephone/Telematics Control Module J526
- In foot well, beneath floor mat
4 - Data Bus On Board Diagnostic Interface J533
- Behind glove compartment
5 - Media Player, Position 1 R118
- In glove compartment
6 - Radio R
- Behind luggage compartment left side trim
- With Speech Input Control Module J507
7 - Front Information Display Control Head Control Module J523
- Behind glove compartment
8 - Digital Sound System Control Module J526
- Behind luggage compartment left side trim
9 - Sound system
10 - Microphone Unit (in front roof module) R164
- Construction → Microphone Unit (in front roof module) R164 , overview
- Removing and installing → Microphone Unit (in front roof module) R164 , removing and installing
11 - Navigation System with CD Drive Control Module J401
- Behind luggage compartment left side trim
12 - TV Tuner R78
- Behind luggage compartment left side trim
13 - CAN-Bus (Comfort)
