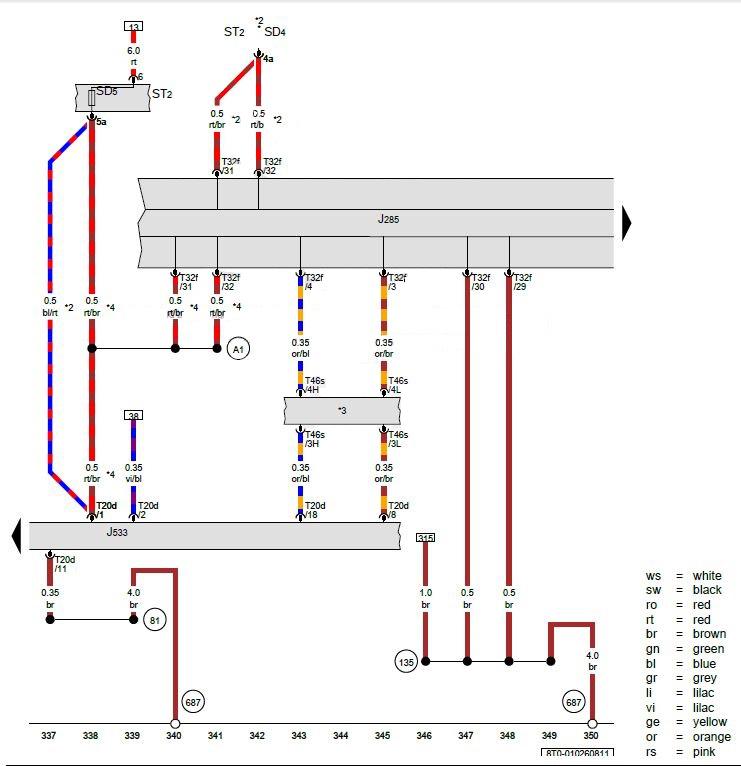

Instrument Cluster Control Module, Data Bus On Board Diagnostic Interface: Notes

G00581282

Courtesy of AUDI OF AMERICA, LLC
