Electrical Components Locations & Connector End Views
>>
Comp. LOC. Control Modules Vehicle Cabin
>>
Control Modules In Right Luggage Compartment
>>
Connector On Electronic Damping Control Module -J250-
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

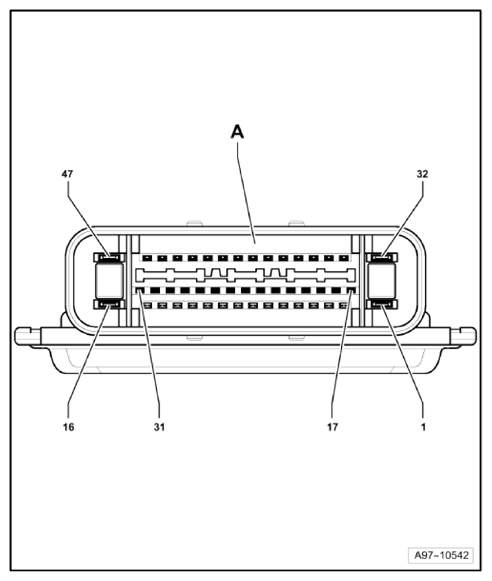

Connector On Electronic Damping Control Module -J250-
Electronic Damping Control Module -J250-
Connector:
47-Pin Connector -T47a-
Courtesy of AUDI OF AMERICA, LLC
