Front Trim Bracket/Compressor/Control Module, Reclining/Multicontour Seat, Removing And Installing: Installing

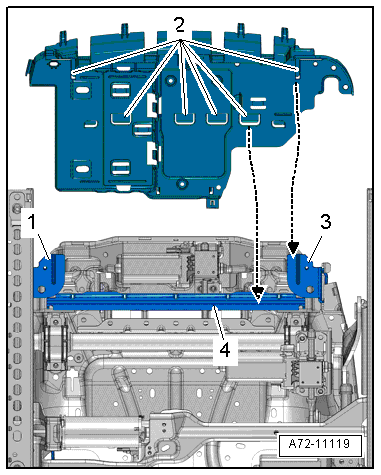

-- Insert front bracket -arrows- by making sure that the tabs -2- grip into the bracket -1, 3, 4-.
Installation is performed in reverse order of removal, noting the following:
WARNING:
- Follow all pyrotechnic components safety precautions, refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
- Before handling pyrotechnic components (for example, connecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.
- Observe all measures when installing the front seat, refer to FRONT SEAT, STANDARD/MULTICONTOUR SEAT, INSTALLING .
