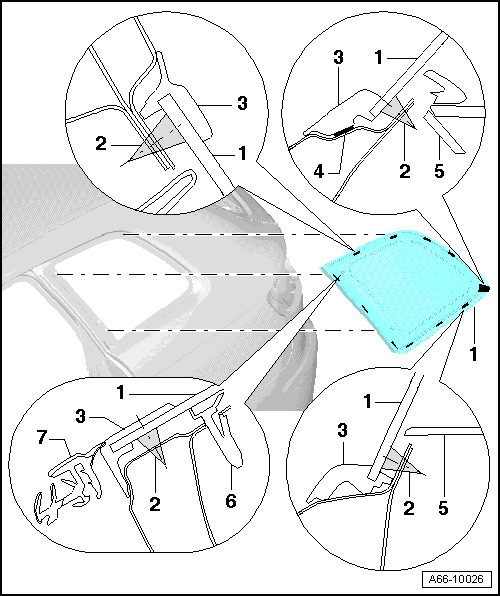

Side Window Assembly Overview
- Side Window
- Adhesive Sealing Material
-- Apply directly next to molding on side window.
- Molding
-- No replacement part, supplied with delivery casing and must not be damaged when removing.
- Double Sided Adhesive Tape
- B-pillar Trim
- Securing Pin
-- Supplied with deliver casing, no replacement part.
-- Securing pin is cut through during cutting out procedure.
-- If the same window is reinstalled, window must be secured in window cutout with adhesive tape.
- Door Seal
