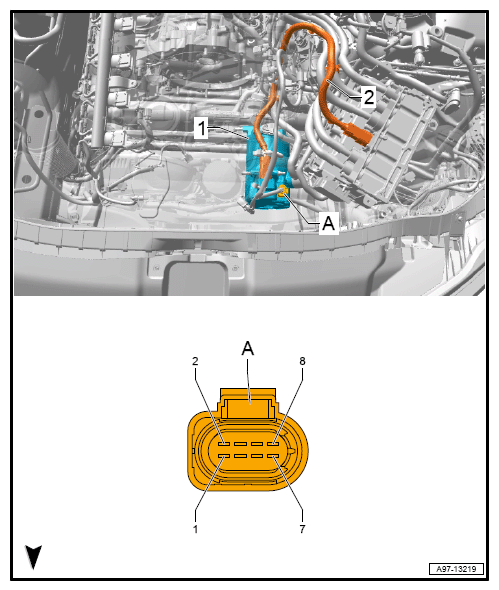

A/C Compressor Control Module -J842-, Connector View
- 8-Pin Connector -T8bh-
| -T8bh- (A) | Designation |
|---|---|
| 1 | |
| 2 | LIN-Bus, to B842 LIN-Bus Connection 8 (in main wiring harness) |
| 3 | High Voltage System Maintenance Connector -TW-, Pilot Line |
| 4 | High voltage heater (PTC) control module -J848-, Pilot Line |
| 5 | Terminal 31, to 645 Ground Connection 1 on bulkhead |
| 6 | |
| 7 | |
| 8 | Terminal 30, from Fuse Panel A -SA-, Fuse 13 (on fuse panel A) -SA13- |
