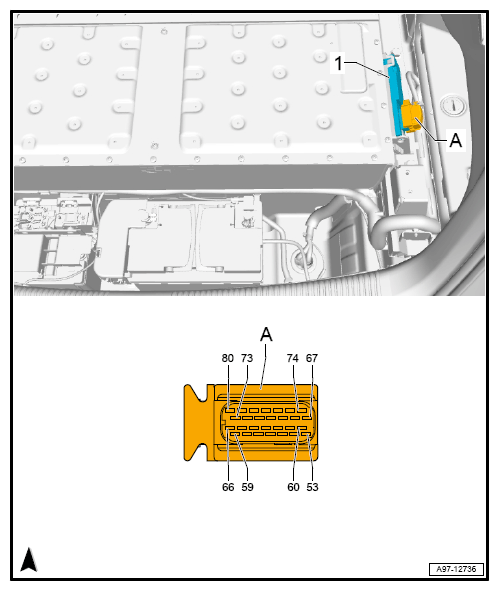

| 53 |
CAN-Bus Hybrid High, to B816 Hybrid CAN bus high-connection 2 (in main wiring harness) |
| 54 |
CAN-Bus Hybrid Low, to B817 Hybrid CAN bus low connection 2 (in main wiring harness) |
| 55 |
CAN-Bus Hybrid High, to B776) Hybrid CAN bus high-connection 1 (in main wiring harness) |
| 56 |
CAN-Bus Hybrid Low, to B777 Hybrid CAN bus low connection 1 (in main wiring harness) |
| 57 |
|
| 58 |
|
| 59 |
Terminal 31, to 399 Ground Connection 34 in main wiring harness) 51 Earth point, on right in luggage compartment |
| 60 |
Terminal 30, from P8 Connection 2 (in High-Voltage Battery Wiring Harness) Fuse carrier 3 -ST3- in fuse panel F -SF- |
| 61 |
|
| 62 |
|
| 63 |
Hybrid Battery Unit -AX1- |
| 64 |
|
| 65 |
|
| 66 |
High Voltage System Maintenance Connector -TW-, Pilot Line |
| 67 |
High-voltage battery coolant pump relay -J1156- |
| 68 |
|
| 69 |
|
| 70 |
High-Voltage Battery Coolant Temperature Sensor 1 -G898- |
| 71 |
High-Voltage Battery Coolant Temperature Sensor 1 -G898- |
| 72 |
|
| 73 |
High voltage battery coolant pump -V590- |
| 74 |
Hybrid Battery Unit -AX1- |
| 75 |
Hybrid Battery Unit -AX1- |
| 76 |
Hybrid Battery Unit -AX1- |
| 77 |
Hybrid Battery Unit -AX1-, Pilot Line |
| 78 |
High-Voltage Battery Coolant Temperature Sensor 2 -G899- |
| 79 |
High-Voltage Battery Coolant Temperature Sensor 2 -G899- |
| 80 |
Terminal 30, from P7 Connection 1, in high-voltage battery wiring harness, Maintenance-connector for high-voltage system -TW- |
