Rear Abs Wheel Speed Sensors -G44- / -G46-, Removing And Installing: Notes

Special tools and workshop equipment required

• Torque Wrench 1332 40-200 Nm VAG 1332

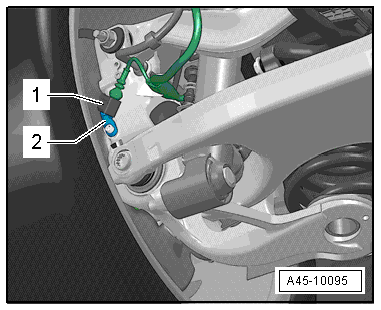

Left rear illustration.

Fig 1: Identifying ABS Wheel Speed Sensor

Courtesy of AUDI OF AMERICA, LLC

1. 1 -

   Speed Sensor -G44- / -G46-

2. 2 -

   Hex Socket Bolt

   • 9 Nm.
