Camera Control Module Connector End View (J852, T5c, J851, T12a)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Camera Control Module Connector End View (J852, T5c, J851, T12a)

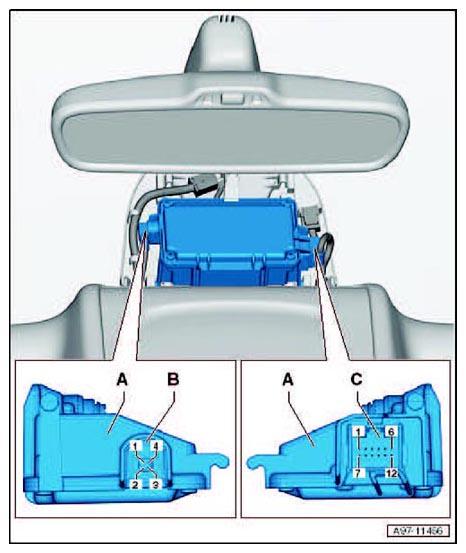

Fig 1: Camera Control Module Connector End View (J852, T5c, J851, T12a)
Courtesy of AUDI OF AMERICA, LLC
A
Camera Control Module -J852-
B
5-Pin Connector -T5c-, black, to Image Processing Control Module -J851-
C
12-Pin Connector -T12a-, black
