FUSE FOR Electrical A/C Compressor -V470-

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S7, 2018 Audi RS 7, 2018 Audi A7 Quattro, 2017 Audi S7, and 2017 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The power for the Electrical A/C Compressor -V470- is supplied via a fuse that is installed in the Electric Drive Power and Control Electronics -JX1-.

Check the power supply for the Electrical A/C Compressor -V470- using the Vehicle Diagnostic Tester in the "Guided Fault Finding" function.

Audi A6 Hybrid

The fuse for the Electrical A/C Compressor -V470- is seated inside the Electric Drive Power and Control Electronics -JX1- and the Parts information.

-- If necessary, replace the fuse or the electric drive power and control electronics .

Audi A6 E-Tron

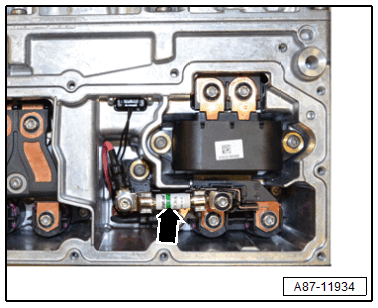

The retainer -arrow- for the Electrical A/C Compressor -V470- sits in the Electric Drive Power and Control Electronics -JX1-, and can currently not be replaced separately (introduction of retainer as replacement part is TBD).

Courtesy of AUDI OF AMERICA, LLC

-- If necessary, replace the retainer or the electric drive power and control electronics .
