Battery Cooling Module Condensation Water Drain, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S7, 2018 Audi RS 7, 2018 Audi A7 Quattro, 2017 Audi S7, and 2017 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
-- Bring the battery cooling module in the service position. Refer to BATTERY COOLING MODULE, BRINGING INTO SERVICE POSITION .

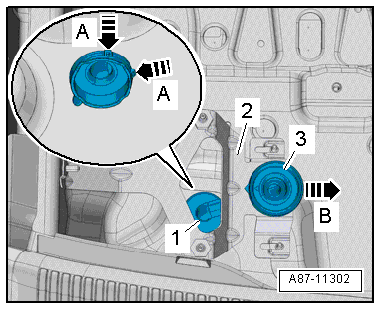

-- Carefully release the plastic ring tabs -arrows A- and press the condensation water drain -1- into the battery cavity.
-- Remove the condensation water drain -3- out of the bracket -2- -arrow B-.
