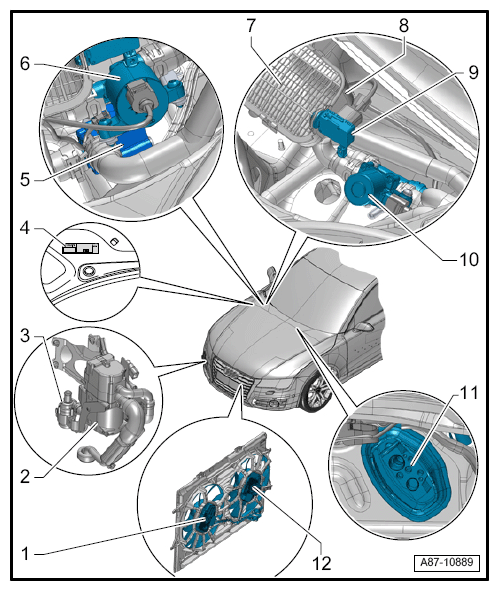

Vehicle Front, Part II

  1. 1 - Coolant fan -V7-
  2. 2 - Auxiliary heater control module -J364-
  3. 3 - Recirculation pump -V55-
  4. 5 - Coolant recirculation pump -V50-
  5. 6 - Coolant shut-off valve -N82-
  6. 9 - Air quality sensor -G238-
  7. 9 - Humidity sensor in fresh air intake duct -G657-
  8. 12 - Coolant fan 2 -V177-
G12770187Courtesy of AUDI OF AMERICA, LLC
