Connector Station Engine Compartment

  1. 14-Pin Connector -T14s-, brown
  2. 14-Pin Connector -T14t-, black
  3. 14-Pin Connector -T14u-, black
  4. Double Connector -T2nb-, black

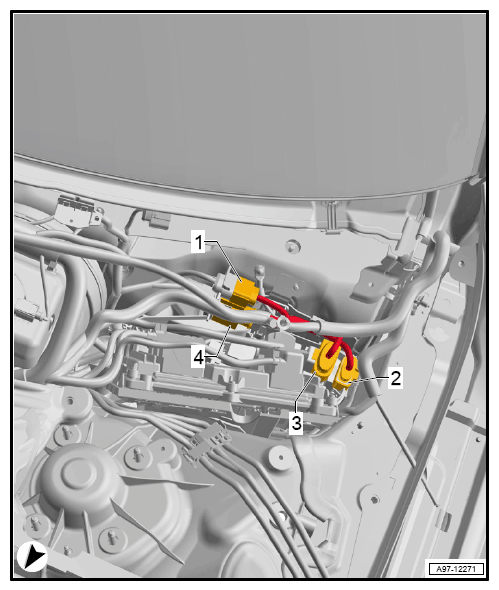

G12770183Courtesy of AUDI OF AMERICA, LLC
