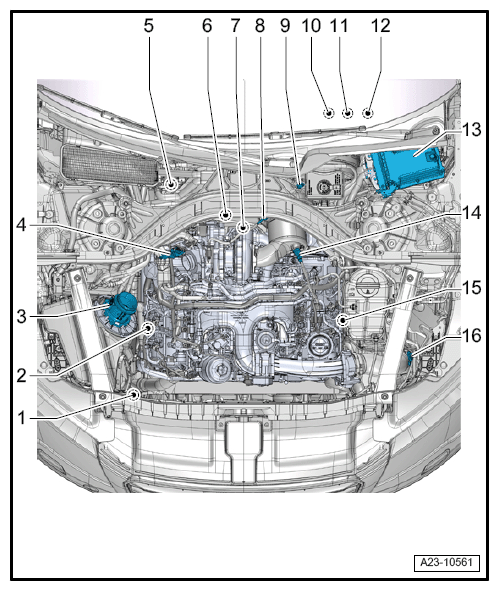

3.0L TDI CPNB Engine Compartment
- 1 - Engine coolant temperature sensor on radiator outlet -G83-
- 2 - Right electrohydraulic engine mount solenoid valve -N145-
- 3 - Mass airflow sensor -G70-
- 4 - Differential pressure sensor G505
- 5 - Exhaust gas temperature sensor 4 G648
- 6 - Engine speed sensor -G28-
- 7 - Exhaust gas temperature sensor 1 G235
- 8 - Exhaust gas temperature sensor 3 G495
- 9 - Brake booster pressure sensor G294
- 10 - Accelerator pedal position sensor -G79-
- 10 - Accelerator pedal position sensor 2 -G185-
- 11 - Instrument cluster control module J285
- 12 - Brake lamp switch F
- 13 - Engine control module J623
- 14 - Heated oxygen sensor G39
- 14 - Oxygen sensor heater Z19
- 15 - Left electrohydraulic engine mount solenoid valve -N144-
- 16 - Charge air pressure sensor -G31-
- 16 - Intake air temperature sensor -G42-
