Overview - Subframe Mount

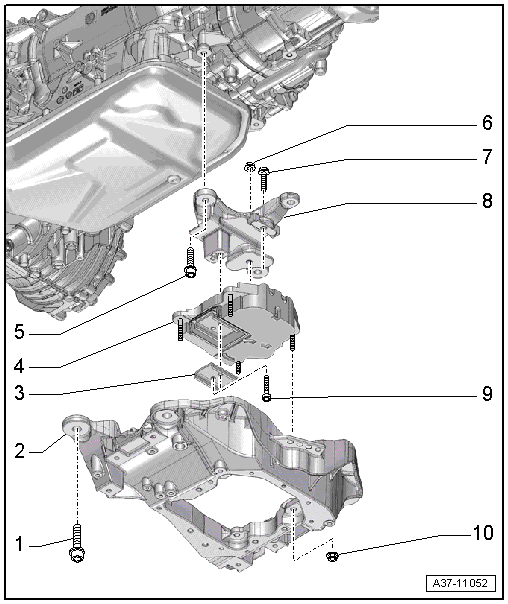

Fig 1: Automatic Transmission Mount Overview

GWWA37-11052

Courtesy of AUDI OF AMERICA, LLC

Bolt
- M10 x 55 8.8: 40 Nm
- M10 x 40 10.9: 70 Nm
Tunnel Crossmember
- Removing and installing. Refer to TUNNEL CROSSMEMBER, REMOVING AND INSTALLING .
Stop
- For the transmission mount
Transmission Mount
- Removing and Installing. Refer to FOR ENGINE(S) CTUA & CGXB - TRANSMISSION MOUNT, REMOVING AND INSTALLING , FOR ENGINE(S) CPNB - TRANSMISSION MOUNT, REMOVING AND INSTALLING or FOR ENGINE(S) CEUC & CRDB - TRANSMISSION MOUNT, REMOVING AND INSTALLING .
Bolt
- 40 Nm
Nut
- 20 Nm
- Only remove when the transmission mount must be separated from the transmission support
Bolt
- 40 Nm
Transmission Support
- Removing and Installing. Refer to FOR ENGINE(S) CTUA & CGXB - TRANSMISSION SUPPORT WITH TRANSMISSION MOUNT, REMOVING AND INSTALLING, VEHICLES WITH DSG TRANSMISSION , FOR ENGINE(S) CPNB - TRANSMISSION SUPPORT WITH TRANSMISSION MOUNT, REMOVING AND INSTALLING, VEHICLES WITH DSG TRANSMISSION or FOR ENGINE(S) CEUC & CRDB - TRANSMISSION SUPPORT WITH TRANSMISSION MOUNT, REMOVING AND INSTALLING .
Bolt
- 20 Nm +90° turn
- Only remove when the transmission mount must be separated from the transmission support
- Replacing
Nut
- 20 Nm
