Auxiliary Heater Control Module Connector End View (J364, T6ap, T2ia)

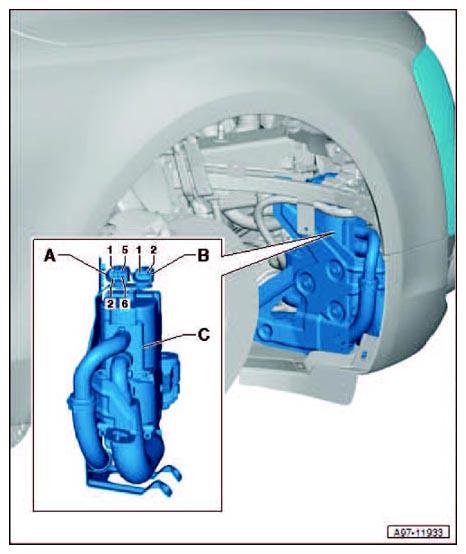

Fig 1: Auxiliary Heater Control Module Connector End View (J364, T6ap, T2ia)

Courtesy of AUDI OF AMERICA, LLC

A	6-Pin Connector -T6ap-, black
B	Double Connector -T2ia-, brown
C	Auxiliary Heater Control Module -J364-
	with: Auxiliary Heater Temperature Sensor 2 -G587-, flame monitor -G64-, temperature sensor -G18-, heater glow plug -Q9-, -V6-, fuel pre-heating heater -Z66-
