Engine Speed Sensor -G28-

Removing

Fig 1: Identifying Front/Rear Noise Insulation

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the fasteners and remove the rear noise insulation -2-.

-- Disconnect the connector -2-.

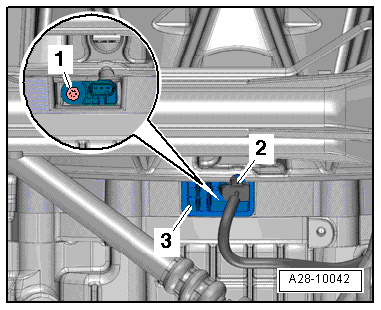

Fig 2: Identifying Engine Speed Sensor, Bolt And Connector

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1- and the Engine Speed (RPM) sensor -G28-.

Installing

Install in reverse order, paying attention to the following:

• Tightening specification  , refer to GLOW PLUG, CAMSHAFT POSITION SENSOR, ENGINE SPEED SENSOR OVERVIEW .

-- Install the noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .
