Accelerator Pedal Module Overview, Version 1

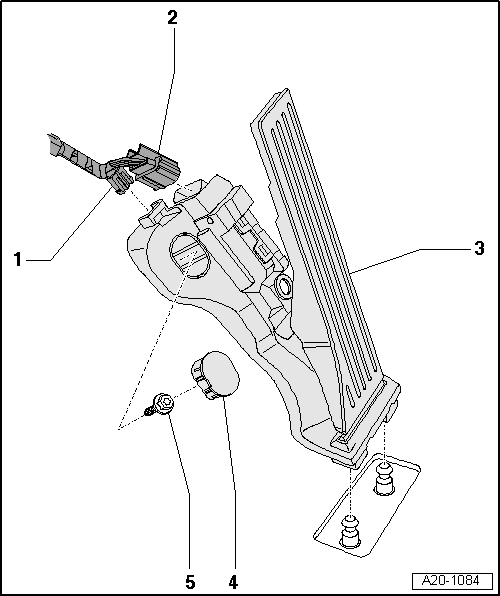

Fig 1: Accelerator Pedal Mechanism Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

Wiring Router
- Connected to accelerator pedal module
Electrical Harness Connector
Accelerator Pedal Module
- With accelerator pedal position sensor -G79- and accelerator pedal position sensor 2 -G185-
- Removing and Installing, refer to ACCELERATOR PEDAL MODULE, VERSION 1
Cap
Bolt
- 9 Nm
