Windshield Washer Pump, Removing And Installing: Removing

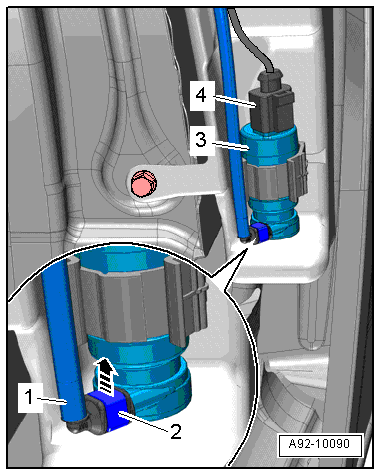

Fig 1: Removing Windshield Washer Pump

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Remove left front wheel.

-- Remove the left front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- Disconnect the connector -4-.

-- Place a drip tray under the windshield washer fluid reservoir.

-- Release the securing clip -2- in the direction of the -arrow- and remove the washer fluid line -1- from the windshield washer system washer fluid pump.

-- Remove the Windshield Washer Pump -V5- -item 3- upward out of the washer fluid reservoir.

NOTE:

Replace the Windshield Washer Pump -V5- bracket if it is damaged.

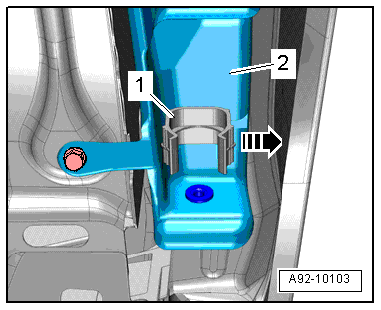

Fig 2: Removing Windshield Washer Pump Bracket

Courtesy of AUDI OF AMERICA, LLC

Press the damaged bracket -1- out of the mount in the washer fluid reservoir -2- toward the outside of the vehicle -arrow- using a screwdriver.
