Parts Location [10/2013 - ]: Illustration

WARNING: This page is about a different car, the 2014 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

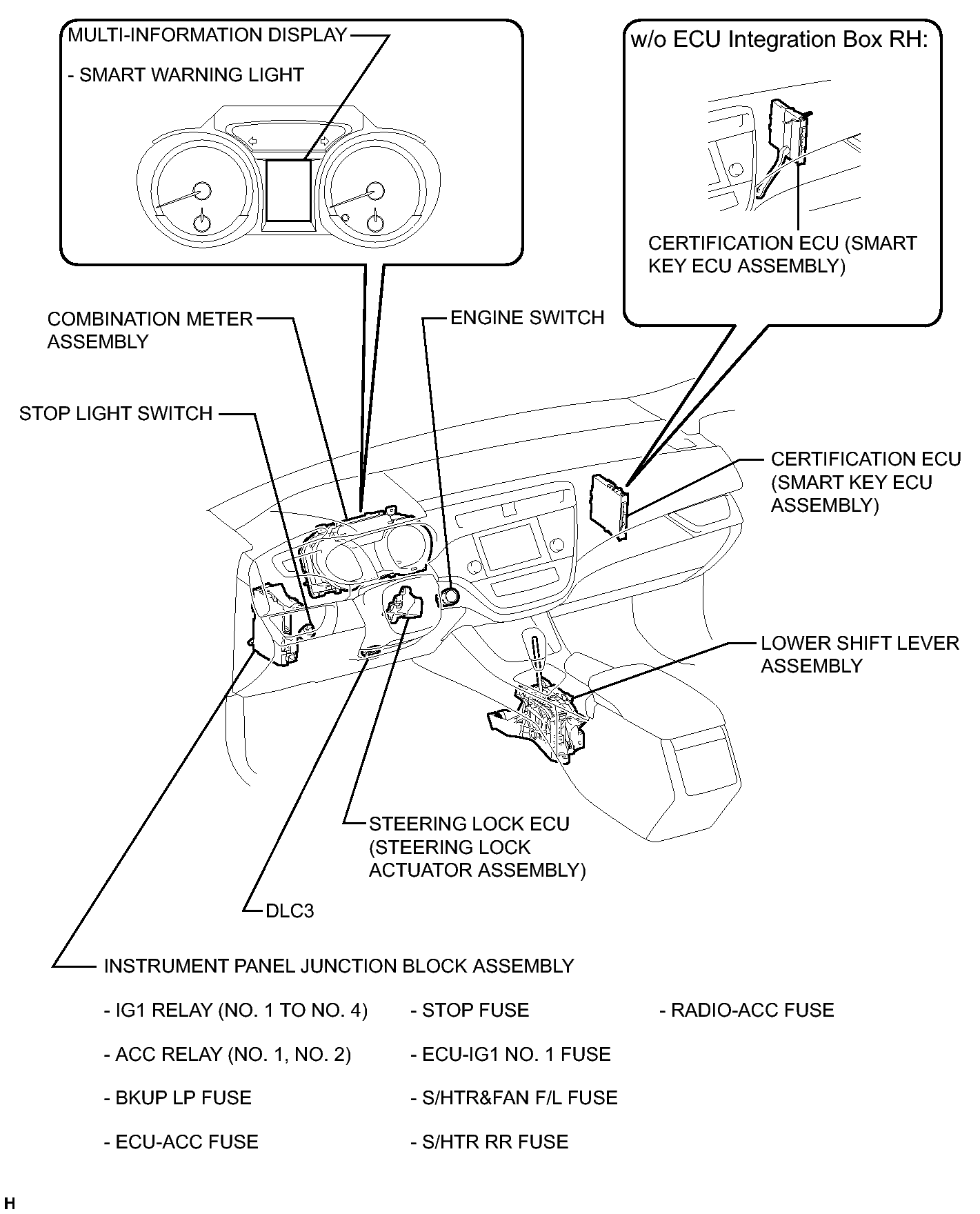

Fig 1: Identifying Smart Key System Components Location (1 Of 2)
GTY369499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

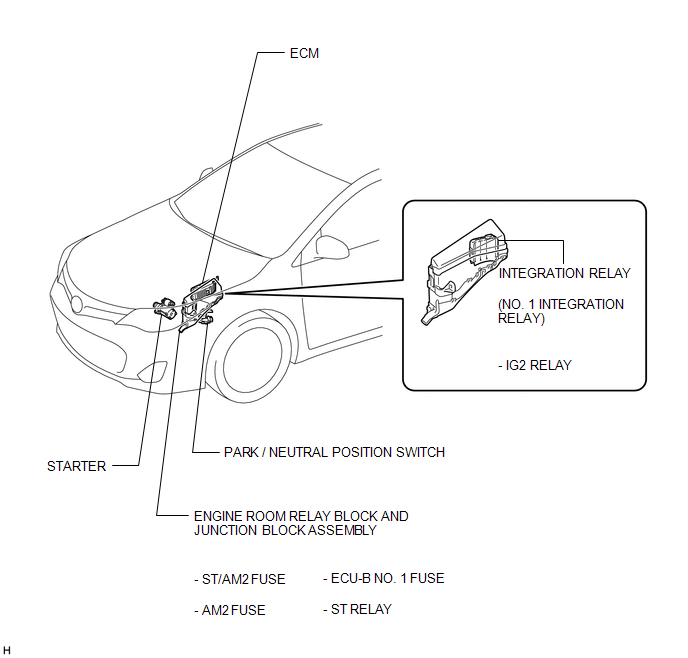

Fig 1: Identifying Smart Key System Components Location (2 Of 2)
GTY373078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
