Lane Change Assistance Control Module -J769- / Lane Change Assistance Control Module 2 -J770-, Removing And Installing, AUDI RS 4: Removing

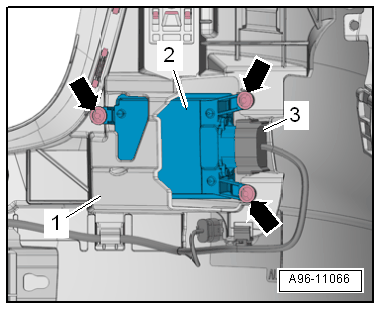

Fig 1: Removing/Installing Lane Change Assistance Control Module

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Disconnect the connector -3-.

-- Remove the bolts -arrows-.

-- Remove the lane change assistance control module -2- out from the mount -1- on the bumper -arrow-.
