Overview - Subframe Mount

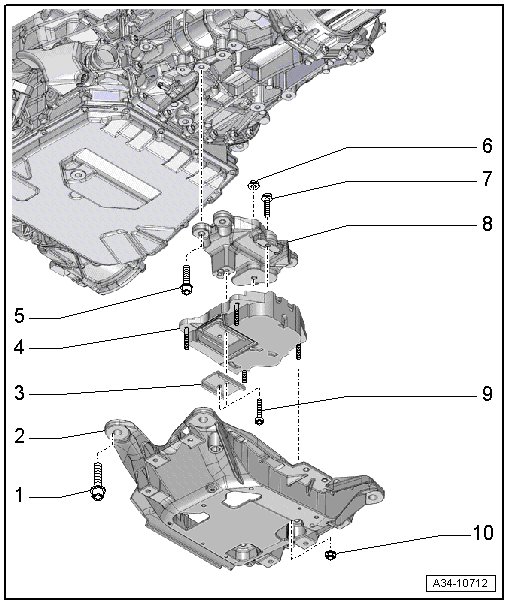

Fig 1: Identifying DSG Transmission Mount 0B5 Overview

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 70 Nm
Tunnel Crossmember
- Removing and installing, refer to TUNNEL CROSSMEMBER, REMOVING AND INSTALLING .
- Depending on the date of manufacture, an additional air guide for cooling the self-locking center differential is attached to the bottom of the tunnel crossmember. Tightening specification for the air guide section, refer to Fig 2
Stop
- For the transmission mount
Transmission Mount
- Removing and Installing, refer to FOR ENGINE(S) CTUA & CGXB - TRANSMISSION MOUNT, REMOVING AND INSTALLING , FOR ENGINE(S) CPNB - TRANSMISSION MOUNT, REMOVING AND INSTALLING or FOR ENGINE(S) CEUC & CRDB - TRANSMISSION MOUNT, REMOVING AND INSTALLING .
Bolt
- 40 Nm
Nut
- 20 Nm
Bolt
- 20 Nm
Transmission Support
Bolt
- 20 Nm +90°
- Replacing
Nut
- 20 Nm

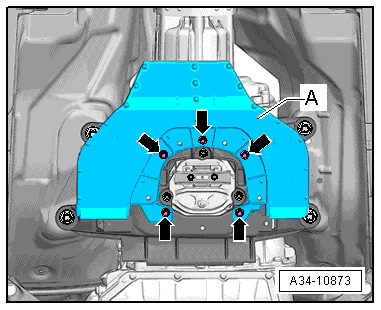

Fig 2: Air Guide
