Instrument Cluster Control Module -J285- Connector Views

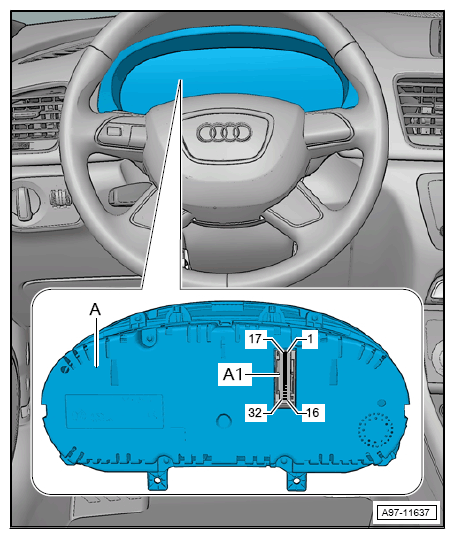

32-PIN CONNECTOR -T32-

  1. A1  - 32-Pin Connector -T32-, Blue
G12775358Courtesy of AUDI OF AMERICA, LLC
