Steering Column Electronic Systems Control Module -J527- Connector Views

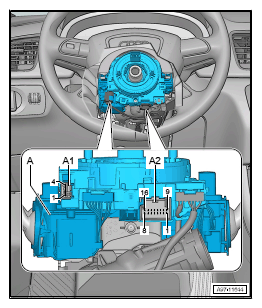

4-PIN CONNECTOR -T4-/16-PIN CONNECTOR -T16C-

  1. A1  - 4-Pin Connector -T4-, Yellow
  2. A2  - 16-Pin Connector -T16C-, Black
G12775350Courtesy of AUDI OF AMERICA, LLC
