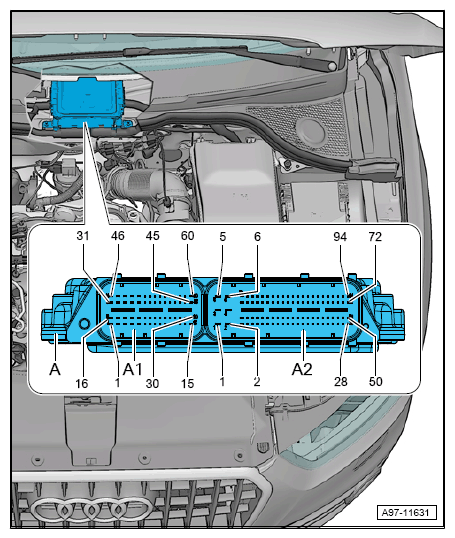

Engine Control Module (ECM) -J623-, Connector Views, (154-Pin)

60-PIN CONNECTOR -T60-/94-PIN CONNECTOR -T94-

  1. A1  - 60-Pin Connector -T60-, Black
  2. A2  - 94-Pin Connector -T94-, Black
G12775322Courtesy of AUDI OF AMERICA, LLC
