Access/Start Control Module Connector End View (J518, T20e, T3a)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Access/Start Control Module Connector End View (J518, T20e, T3a)

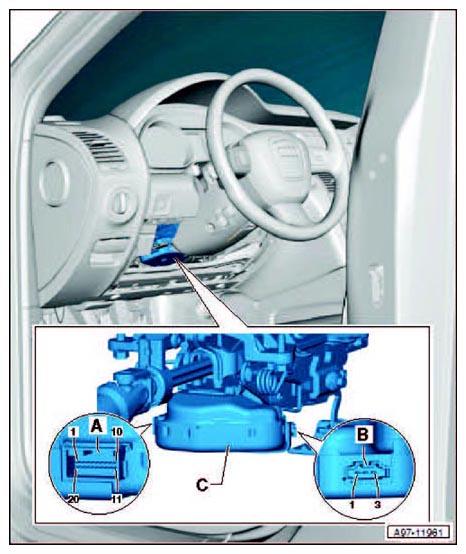

Fig 1: Access/Start Control Module Connector End View (J518, T20e, T3a)
Courtesy of AUDI OF AMERICA, LLC
A
20-Pin Connector -T20e-, black
B
3-Pin Connector -T3a-, black
C
Access/Start Control Module -J518-
