NOx Sensor Control Module 2 Connector End View (J881, T5e)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
NOx Sensor Control Module 2 Connector End View (J881, T5e)

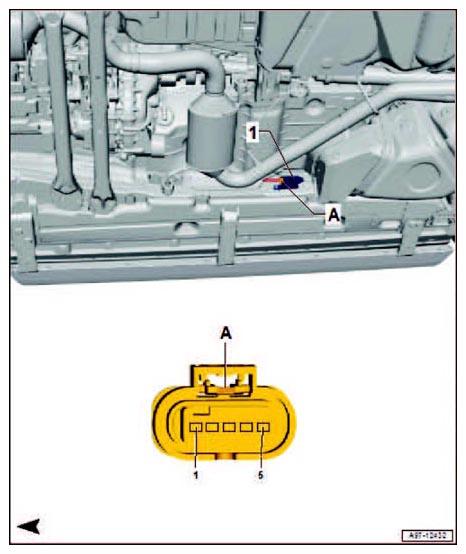

Fig 1: NOx Sensor Control Module 2 Connector End View (J881, T5e)
Courtesy of AUDI OF AMERICA, LLC
1
NOx sensor control module 2 -J881-
A
5-Pin Connector -T5e-
T5d
Designation
1
Terminal 30
2
Terminal 31
3
CAN-Bus, Low
4
CAN-Bus, High
5
Coding
