Structure-Borne Sound Control Module Connector End View (J869)

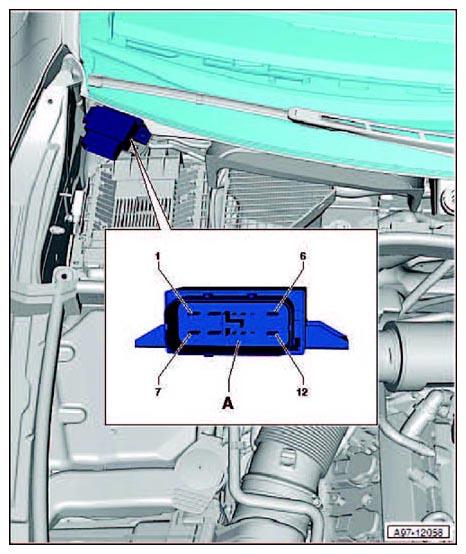

Fig 1: Structure-Borne Sound Control Module Connector End View (J869)
Courtesy of AUDI OF AMERICA, LLC
