Vehicle Electrical System Control Module 2 Connector End View (J520, T40a)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Vehicle Electrical System Control Module 2 Connector End View (J520, T40a)

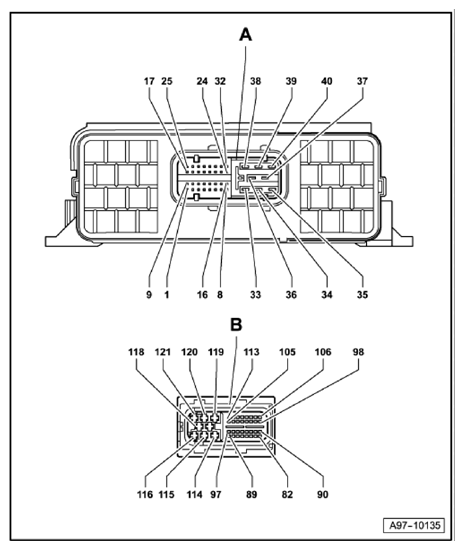

Fig 1: Vehicle Electrical System Control Module 2 Connector End View (J520, T40a)
Courtesy of AUDI OF AMERICA, LLC
A
Vehicle Electrical System Control Module 2 -J520-
B
40-Pin Connector -T40a-, black on wiring harness
