CLIMATRONIC Control Module -J255-

Component Location

In Front Center Console

Pin Arrangements

Courtesy of AUDI OF AMERICA, LLC

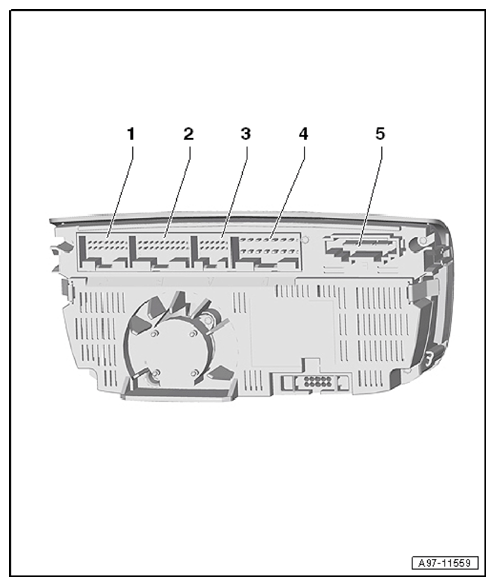

1. 16-Pin Connector -T16D-, Black
2. 20-Pin Connector -T20K-
3. 12-Pin Connector -T12K-
4. 16-Pin Connector -T16C-, Brown
5. 3-Pin Connector -T3Ae-, Black

Courtesy of AUDI OF AMERICA, LLC

Back To Overview  → COMP. LOC. CONTROL MODULES .
