Fuel Pump (FP) Control Module -J538-: Notes

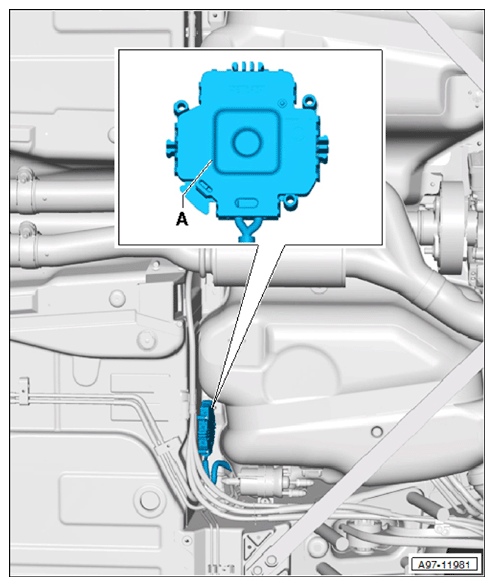

Component Location

On Tank, Lower Right.

  1. Fuel Pump (FP) Control Module -J538-
G12778312Courtesy of AUDI OF AMERICA, LLC
