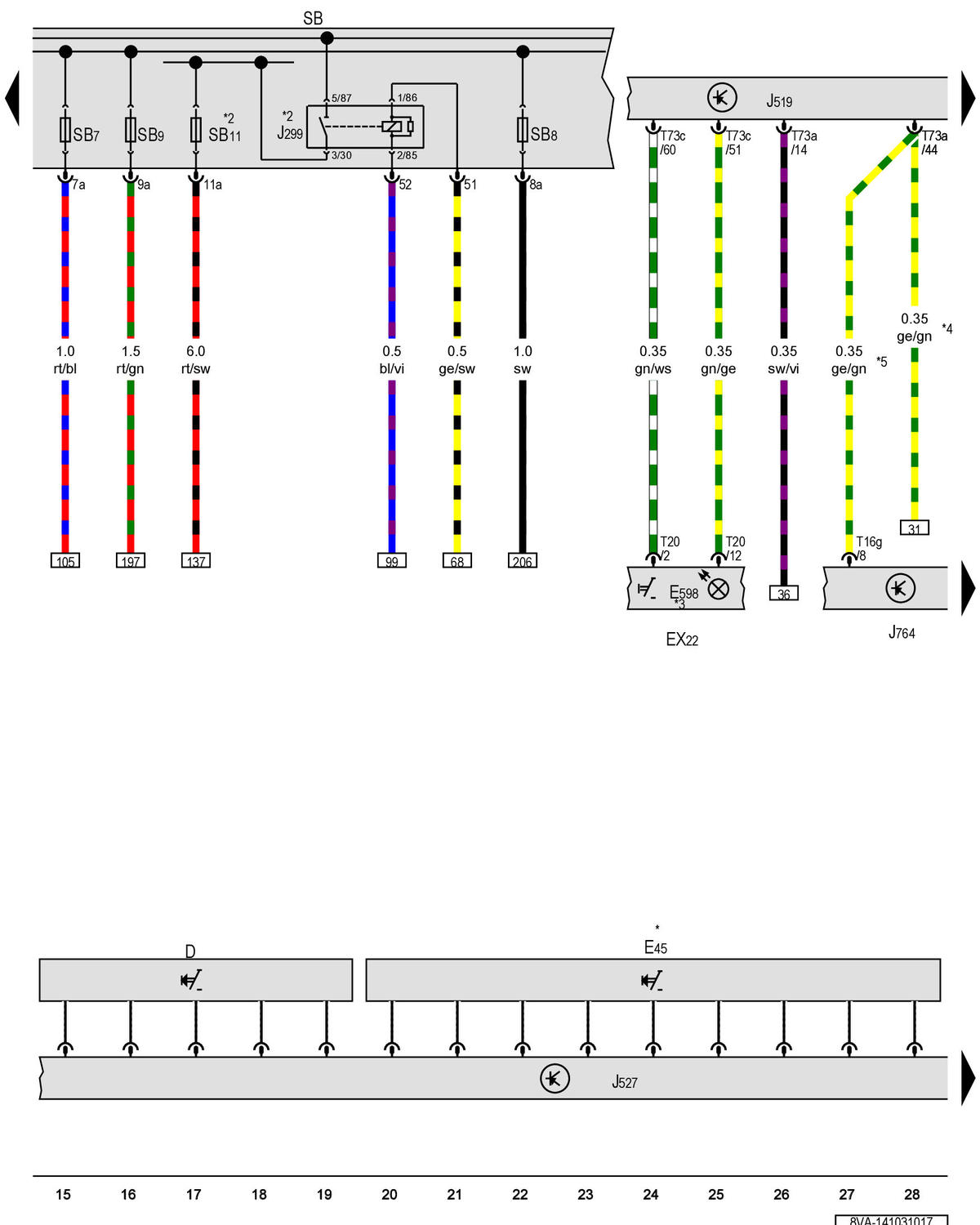

Ignition/Starter Switch, Switch Module In Instrument Panel, Center, Cruise Control Switch, Vehicle Electrical System Control Module, Steering Column Electronics Control Module, Fuse Panel B: Notes

GWW8VA-141031017Courtesy of AUDI OF AMERICA, LLC
