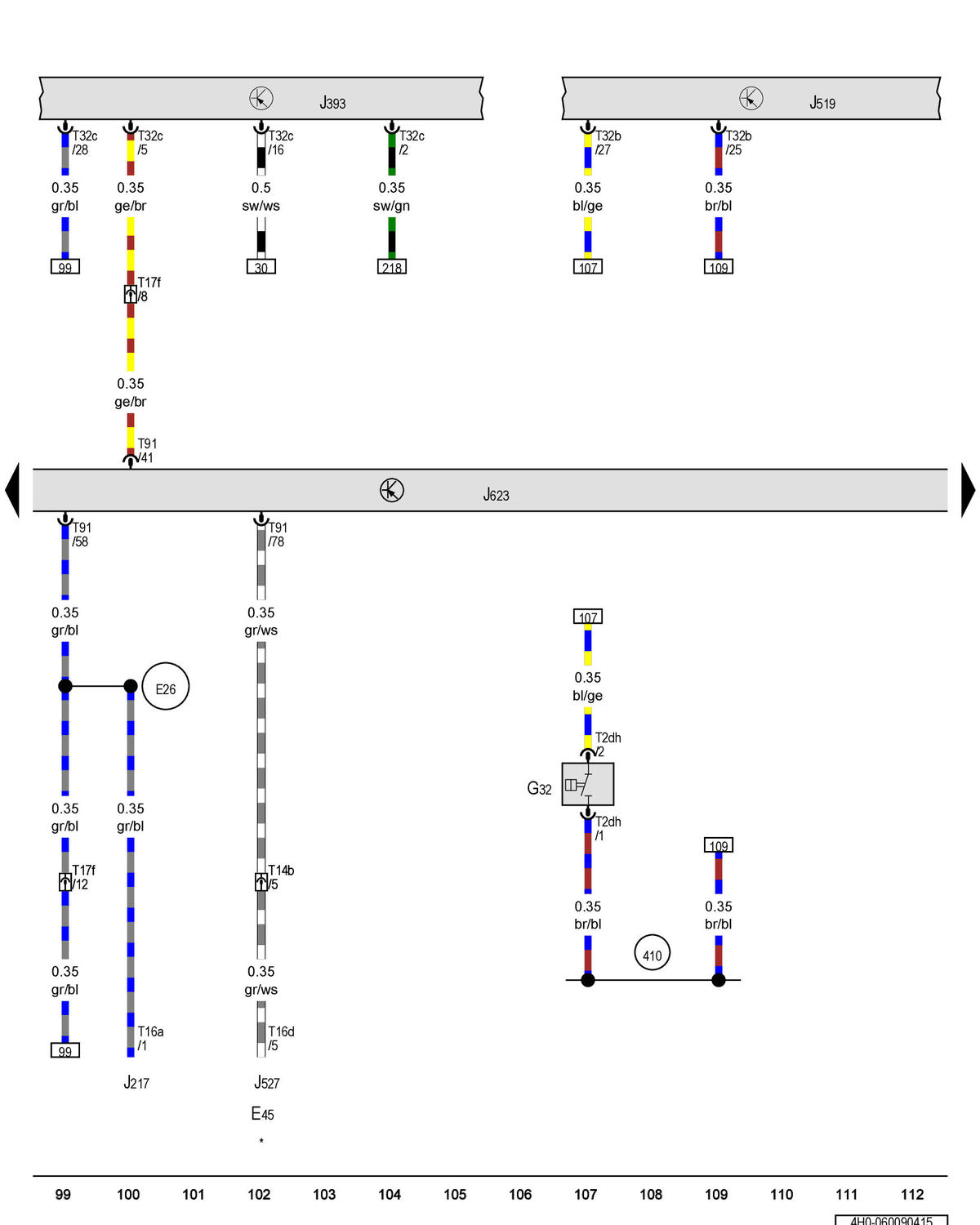

Engine Coolant Level Sensor, Vehicle Electrical Control Module System, Engine Control Module: Notes

GWW4H0-060090415Courtesy of AUDI OF AMERICA, LLC
