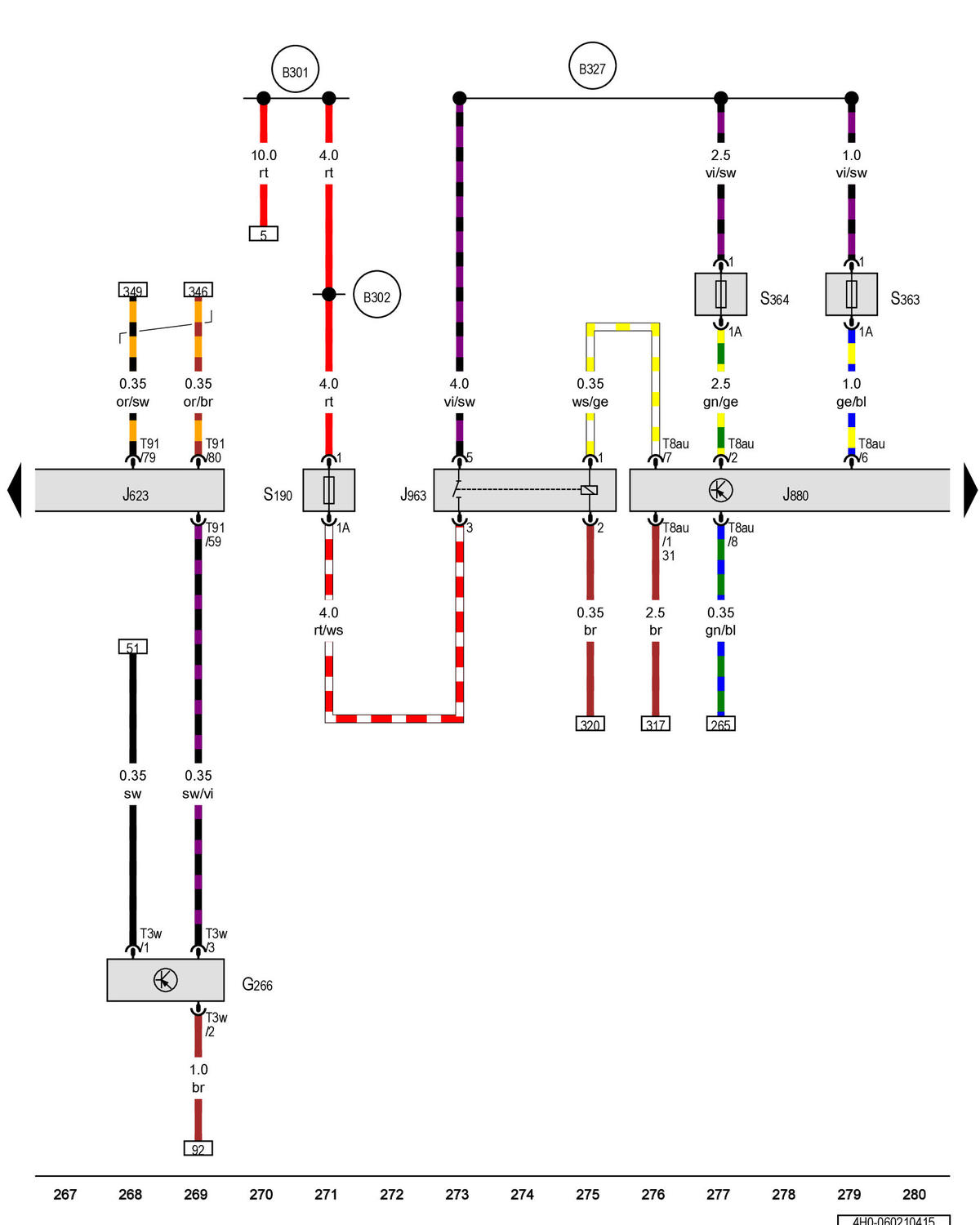

Oil Level Thermal Sensor, Engine Control Module, Reducing Agent Metering System Control Module, Reducing Agent Metering System Relay: Notes

GWW4H0-060210415Courtesy of AUDI OF AMERICA, LLC
