Resetting the Unlock

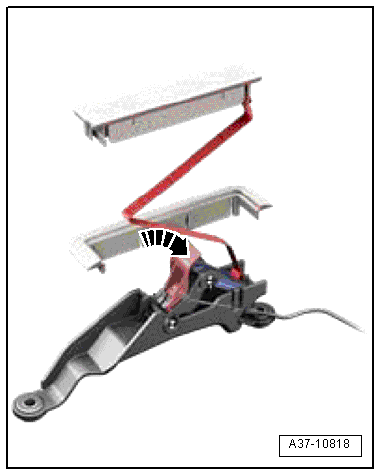

Fig 1: Identifying Release Lever
GWWA37-10818Courtesy of AUDI OF AMERICA, LLC

-- Fold back the upper part of the release lever.

-- Operate the unlocking lever and push down the release lever into its starting position -arrow- until it audible engages.

-- Install the cover.

NOTE:

P  will appear in the instrument cluster and on the Selector Lever Transmission Range Position Display Unit -Y26- when the parking lock is engage.
