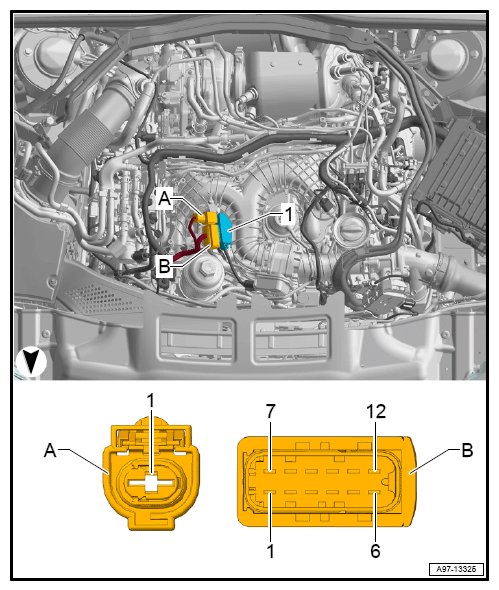

Automatic Glow Time Control Module -J179-, Connector View
1-Pin Connector -T1q-/12-Pin Connector -T12i-
| T1q (A) | Designation |
|---|---|
| 1 | Power 30 |
| T12i (B) | Designation |
|---|---|
| 1 | Glow Plug 5 -Q14- |
| 2 | Glow Plug 6 -Q15- |
| 3 | ... |
| 4 | ... |
| 5 | Relay and fuse panel 1 -SR1- |
| 6 | |
| 7 | Glow Plug 1 -Q10- |
| 8 | Glow Plug 2 -Q11- |
| 9 | Glow Plug 3 -Q12- |
| 10 | Glow Plug 4 -Q13- |
| 11 | Ground 31 |
| 12 | Engine control module -J623- |
