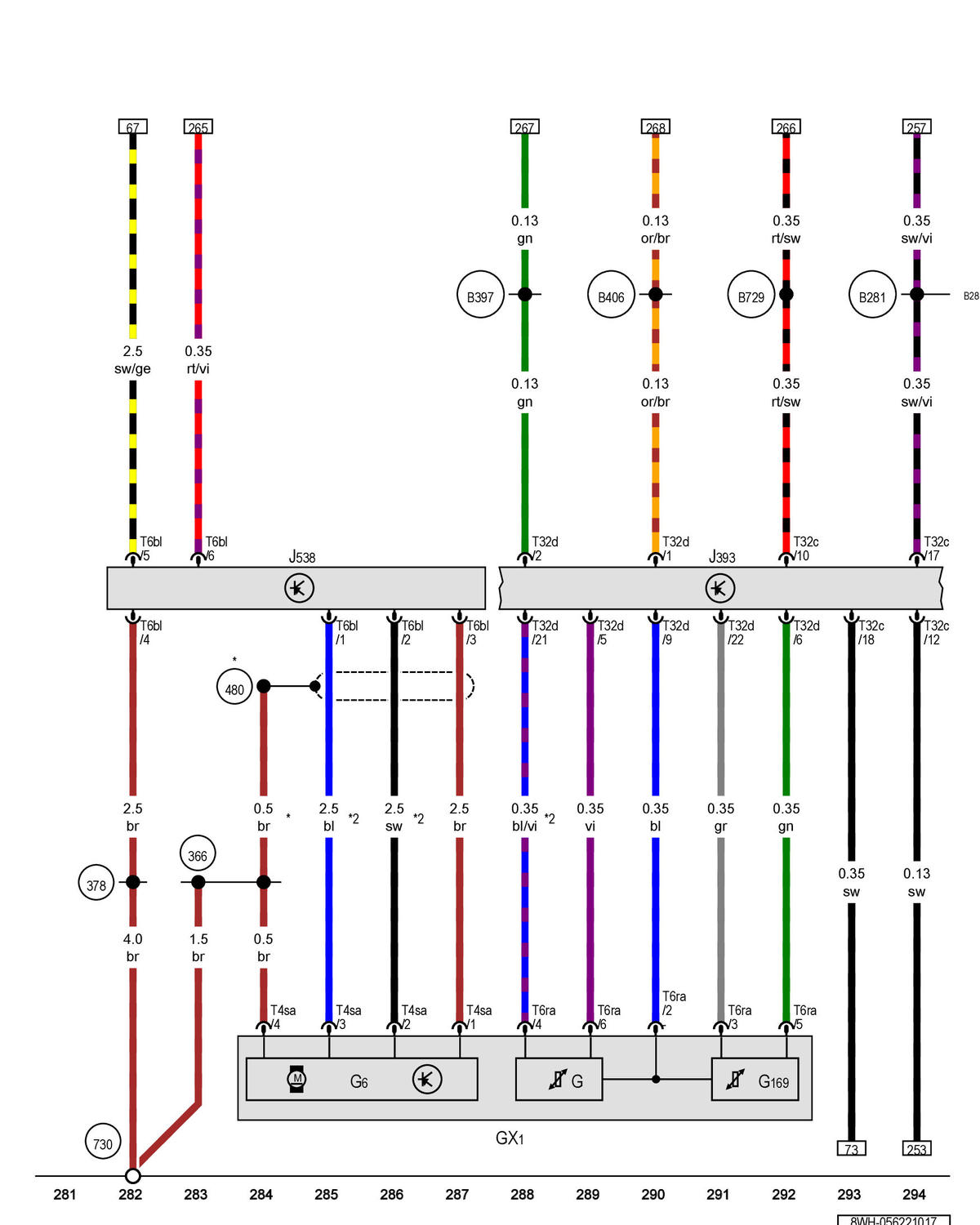

Fuel Delivery Unit, Comfort System Central Control Module, Fuel Pump Control Module: Notes

GWW8WH-056221017Courtesy of AUDI OF AMERICA, LLC
