Wiring Diagram [CYMC]
>>
Wiring Diagrams
>>

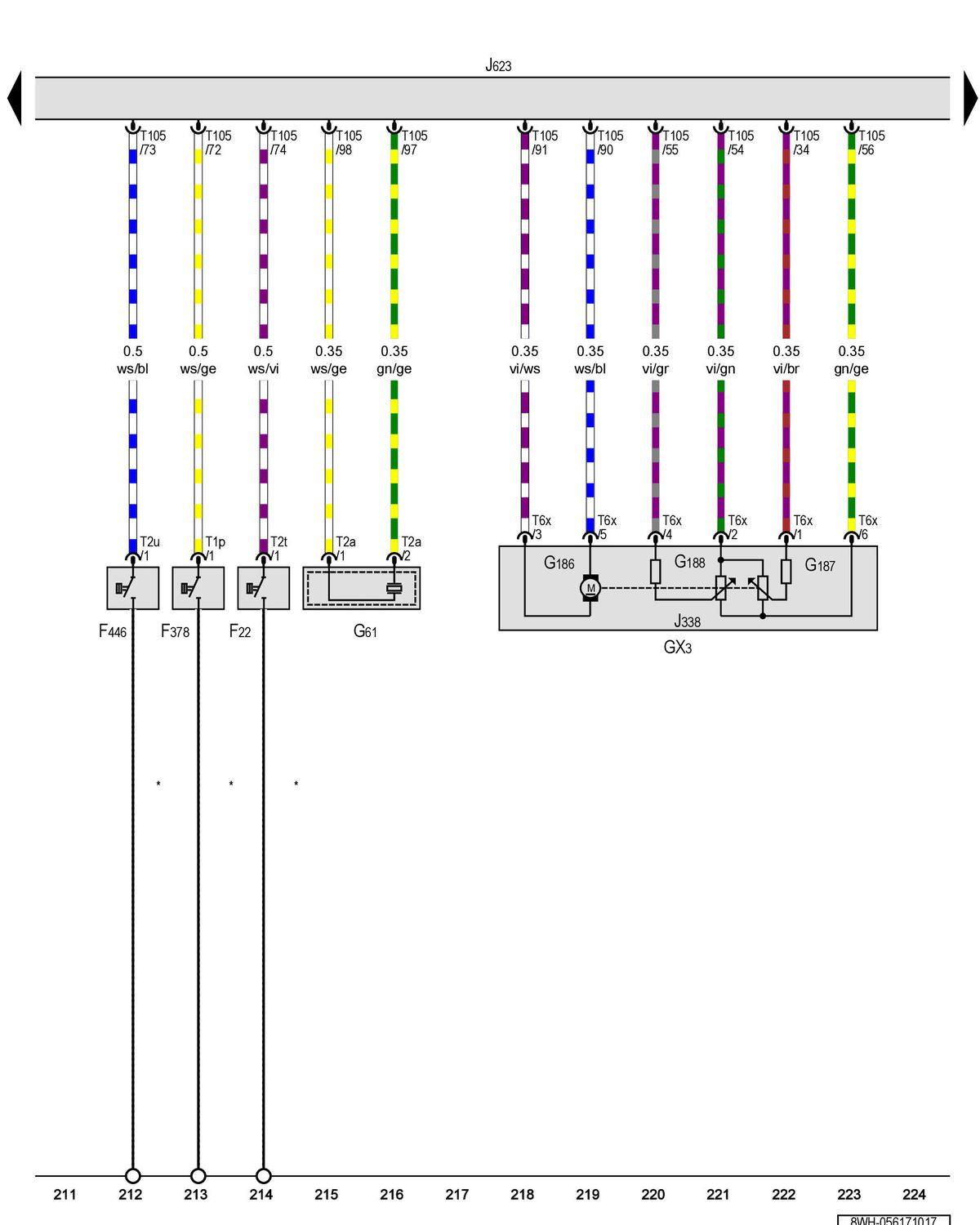

Oil Pressure Switch, Reduced Oil Pressure Switch, Oil Pressure Switch, Level 2, Throttle Valve Control Module, Knock Sensor 1, Engine/Motor Control Module
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Oil Pressure Switch, Reduced Oil Pressure Switch, Oil Pressure Switch, Level 2, Throttle Valve Control Module, Knock Sensor 1, Engine/Motor Control Module: Notes
Courtesy of AUDI OF AMERICA, LLC
