Wiring Diagram [CYMC]
>>
Wiring Diagrams
>>

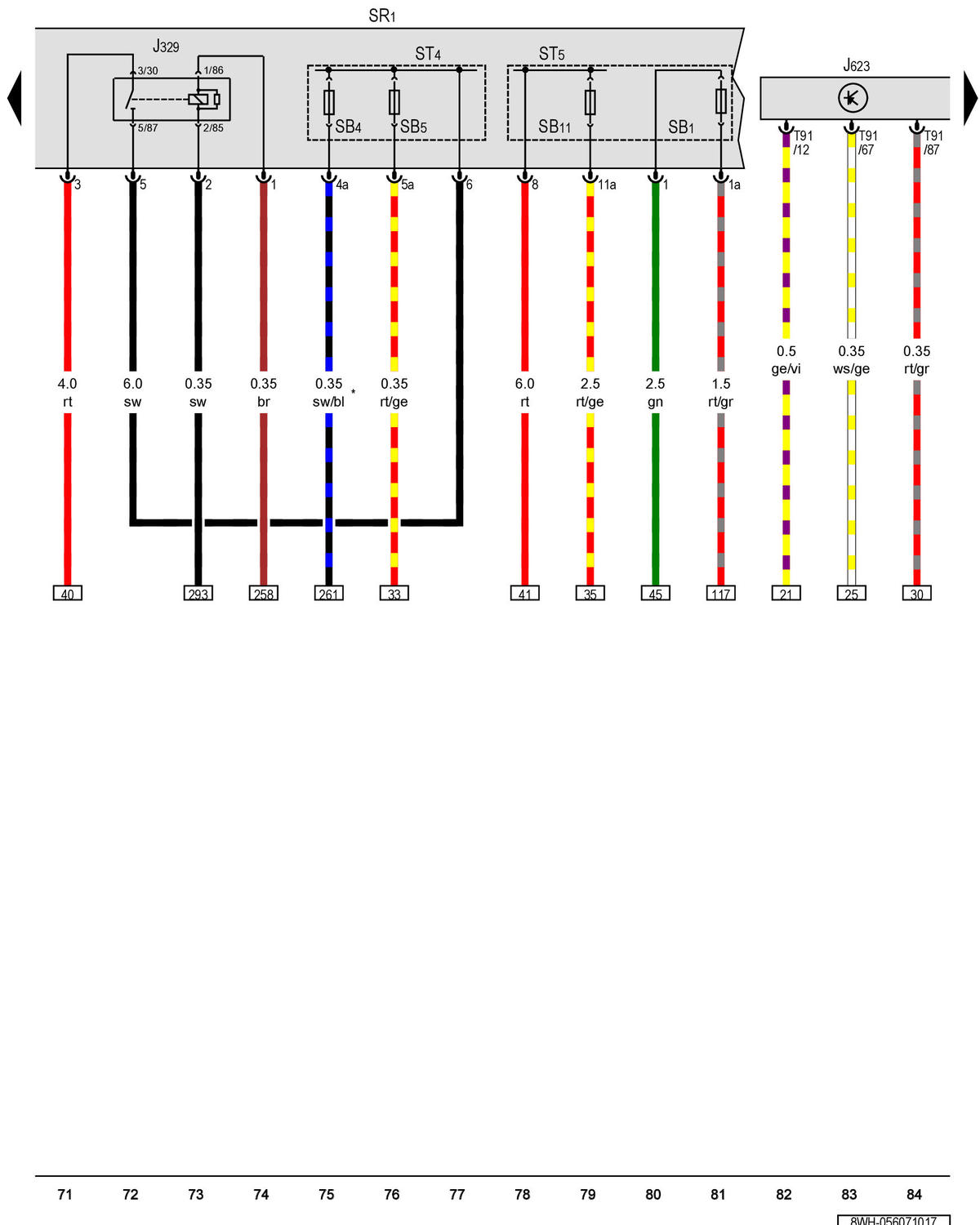

Terminal 15 Power Supply Relay, Engine/Motor Control Module, Relay And Fuse Panel 1
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Terminal 15 Power Supply Relay, Engine/Motor Control Module, Relay And Fuse Panel 1: Notes
Courtesy of AUDI OF AMERICA, LLC
