Bearing Inspection

WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

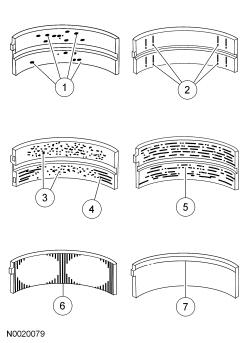

Inspect bearings for the following defects:
- 1.

  Cratering - fatigue failure
- 2.

  Spot polishing - incorrect seating
- 3.

  Imbedded dirty engine oil
- 4.

  Scratching - dirty engine oil
- 5.

  Base exposed - poor lubrication
- 6.

  Both edges worn - journal damaged
- 7.

  One edge worn - journal tapered or bearing not seated

Courtesy of FORD MOTOR COMPANY
