Component Location Overview - Control Modules

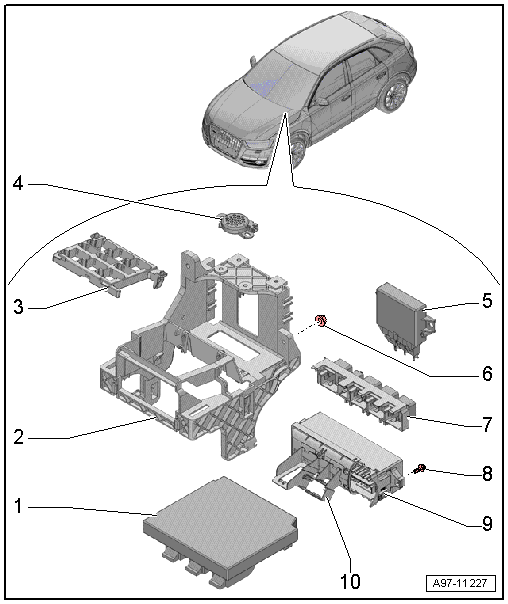

Fig 1: Control Modules Component Location

Courtesy of AUDI OF AMERICA, LLC

Vehicle Electrical System Control Module -J519-
- Removing and installing. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
Mount
- For the relay and fuse panel control module
Relay Carrier under Left Instrument Panel
Front Parking Aid Warning Buzzer -H22-
- Overview. Refer to OVERVIEW - PARKING AID .
Vehicle Positioning System Interface Control Module -J843-
- Removing and installing. Refer to Central Locking .
Nut
- Tightening specification. Refer to OVERVIEW - INSTRUMENT PANEL RELAY CARRIER/FUSE CARRIER AND A-PILLAR RELAY CARRIER/FUSE CARRIER .
- Quantity: 2
Vehicle Electrical System Control Module Relay Panel
- Removing and installing. Refer to RELAY CARRIER ON VEHICLE ELECTRICAL SYSTEM CONTROL MODULE, REMOVING AND INSTALLING .
Bolt
- Tightening specification. Refer to OVERVIEW - INSTRUMENT PANEL RELAY CARRIER/FUSE CARRIER AND A-PILLAR RELAY CARRIER/FUSE CARRIER .
- Quantity: 2
Fuse Panel C -SC-
- Overview. Refer to OVERVIEW - INSTRUMENT PANEL RELAY CARRIER/FUSE CARRIER AND A-PILLAR RELAY CARRIER/FUSE CARRIER .
Mount
- For 16-Pin Connector -T16-
