Airbag Control Module Connector End View (J234, T100)
Behind the center consol.

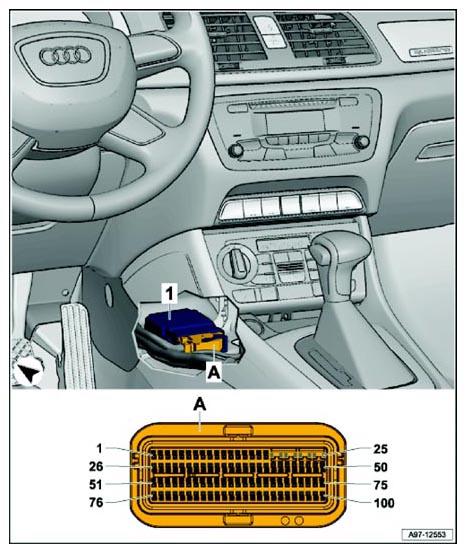

Fig 1: Airbag Control Module Connector End View (J234, T100)
Courtesy of AUDI OF AMERICA, LLC
1
Airbag Control Module -J234-
A1
100-Pin Connector -T100-, yellow
Courtesy of AUDI OF AMERICA, LLC
