Engine Control Module (ECM) Connector End View (J623, T91, T105)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Engine Control Module (ECM) Connector End View (J623, T91, T105)

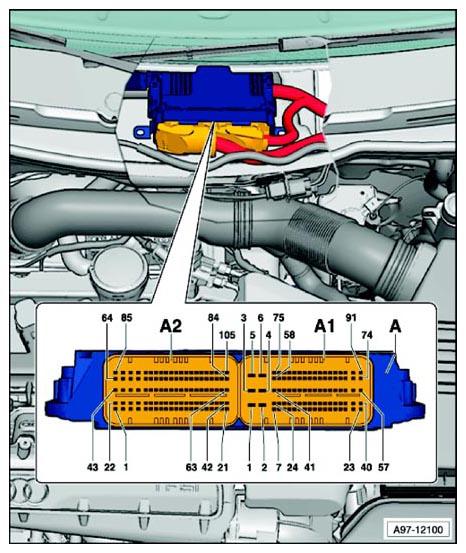

Fig 1: Engine Control Module (ECM) Connector End View (J623, T91, T105)
Courtesy of AUDI OF AMERICA, LLC
A
Engine Control Module (ECM) -J623-
A1
91-ABS Control -T91- black
A2
105-Pin Connector -T105- black
